Quest 506 Industrial Dehumidifier - 506 Pints/Day Heavy Duty Moisture Removal for Large Spaces, Basements, Warehouses & Commercial Use

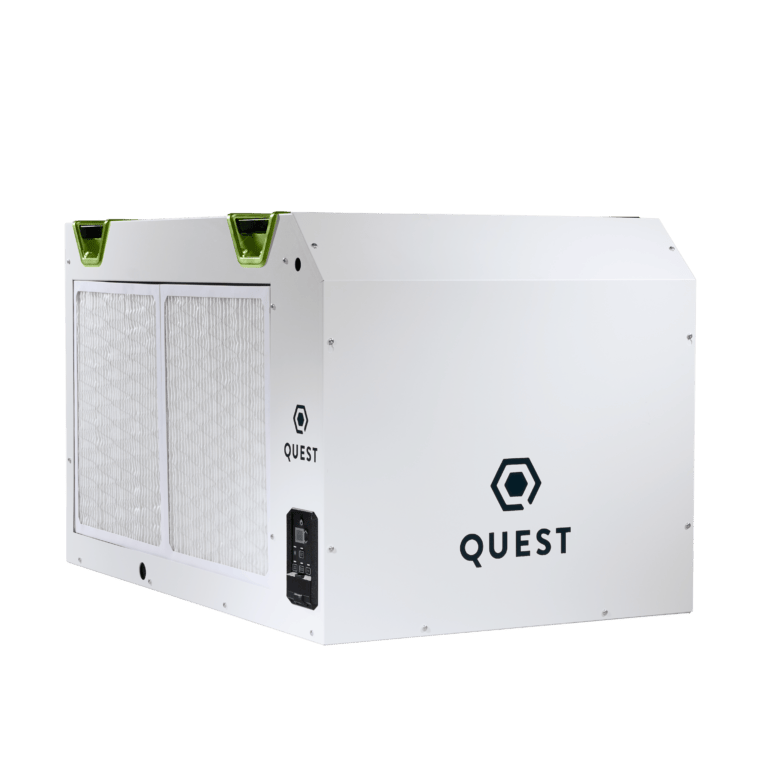

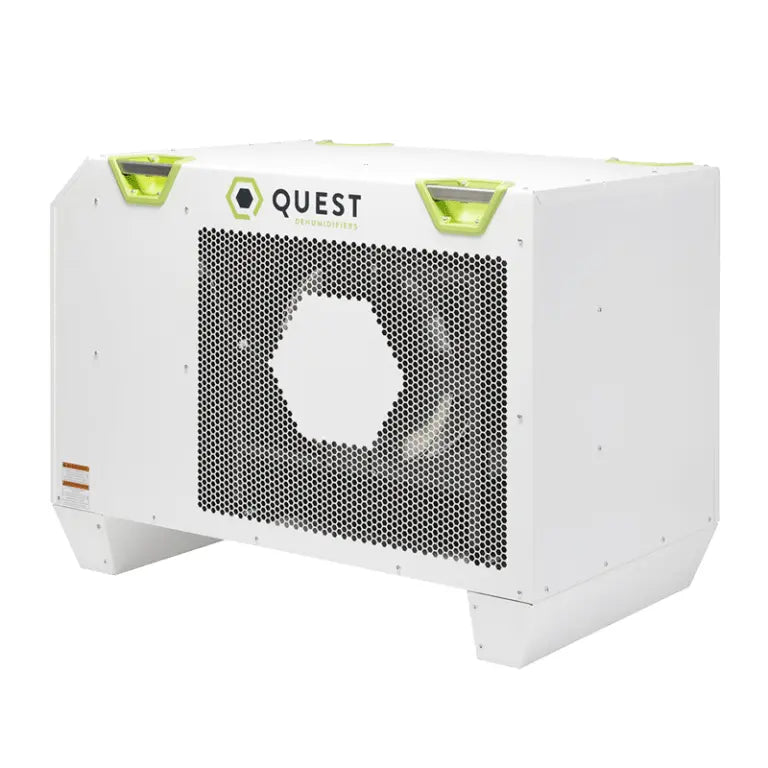

Quest 506 Industrial Dehumidifier — 506 Pints/Day - 277V

The Quest 506 277V dehumidifier offer the same quality and features as the original Quest 506 220/240V units, but instead offer 277V voltages for use in industrial facilities.

Built with patented M-CoRR technology, this unit is your route to achieving an optimum moisture level, crucial for operations in agriculture, industrial manufacturing, and other moisture-sensitive industries. With its 506-pint-a-day capacity, you can easily maintain the right amount of humidity round the clock.

But even with the Quest 506 running round-the-clock, it still manages to pull more water for every kilowatt-hour, giving you more savings. And with the MERV 13 filtration system, contaminants stay away from your controlled environment.

This  dehumidifier is also easy to install and use and use. With integrated handles and hang points, the Quest 506 can be suspended overhead to free up valuable floor space or placed on the floor for no-frills operations. The industry’s lowest amp draw ensures less heat output, preserving a comfortable ambiance.

The Quest 506 meets California Title 24 requirements, is UL-certified and ETL-listed, and has a five-year warranty.

Quest 506 Features

M-CoRR Technology

The Multi-Coil Refrigeration allows the Quest 506 to achieve a remarkable 506 pints capacity with an 8.1 pint per kilowatt hour efficiency.

MERV 13 Filtration

Thanks to the superior MERV-13 filtration on the Quest 506, you get healthier air quality, effectively removing dust, pollen, mold, and bacteria.

Digital Control

The Digital Control on the Quest 506 makes operation effortless and comes with a self-diagnostic system and a dark mode to reduce eye strain in the dark.

Title 24 Compliance

The Quest 506 is Title 24 compliant, making it one of the energy-efficient dehumidification systems available today.

Durable Construction

The Quest 506 is made with anti-corrosive material, making it ideal for dehumidifying work.

Flexible Installation

Suspend the Quest 506 or leave it freestanding; the choice is yours, thanks to the compact design.

---

Quest 506 Highlights

• 506 pint capacity per day
• 8.1 pints per kilowatt hour efficiency
• 1350 CFM
• 31900 BTU
• 2700 watts
• M-CoRR Technology
• MERV-13 Filtration
• External controller
• Anti-corrosion base
• Plug and Play Operation
• Can be suspended or freestanding
• Title 24 Compliant
• UL-Rated
• ETL-Listed
• Five-year warranty

---

Quest 506 Specifications

CFM:	1350 @ 0.0” WG
POWER:	2700 Watts
SUPPLY VOLTAGE:	277 VAC 1 Phase - 60 Hz
CURRENT DRAW:	10.0A
RATED CURRENT DRAW: (104 F | 36%)	12.2A
MINIMUM CIRCUIT AMPACITY (MCA):	16.3A
MAXIMUM OVERCURRENT PROTECTION	25
RECOMMENDED BREAKER SIZE:	20A
ENERGY FACTOR (L/KWH):	3.8 L/kWh
OPERATING TEMP:	56 F Min – 95 F Max
WATER REMOVAL (PINTS/DAY):	506
EFFICIENCY (PINTS/KWH):	8.1
AIR FILTER (MERV-13):	Size: 18” x 20” x 2”
POWER CORD:	12ga 10’, NEMA L7-20P
DRAIN CONNECTION:	3/4” Threaded NPT
REFRIGERANT TYPE:	R410A
REFRIGERANT AMOUNT:	4 lb 8 oz
WIDTH:	28.9”
HEIGHT:	34.1”
LENGTH:	44.8”
WEIGHT:	280 lbs
SHIPPING WEIGHT	340 lbs

---

Quest 506 Installation Options



FREESTANDING UNIT

CAN BE MOUNTED OVERHEAD WITH USE OF 3/8″ THREADED ROD



P-TRAP REQUIREMENTS

---

Quest 506 Manuals

---

Quest 506 Warranty

Quest offers a 5-year warranty. This does not include user error or operator abuse.
