CannaFreeze FC 500 Freeze Dryer & Chiller for Home and Commercial Use - Perfect for Food Preservation, Pharmaceuticals, and Cannabis Processing
Free shipping on all orders over $50
7-15 days international
19 people viewing this product right now!
30-day free returns
Secure checkout
23013639
Description
Description
- Type
Freezer Dryer - Drying Capability
Up to 785?lbs per 24 hr - Warranty
1 Year
?

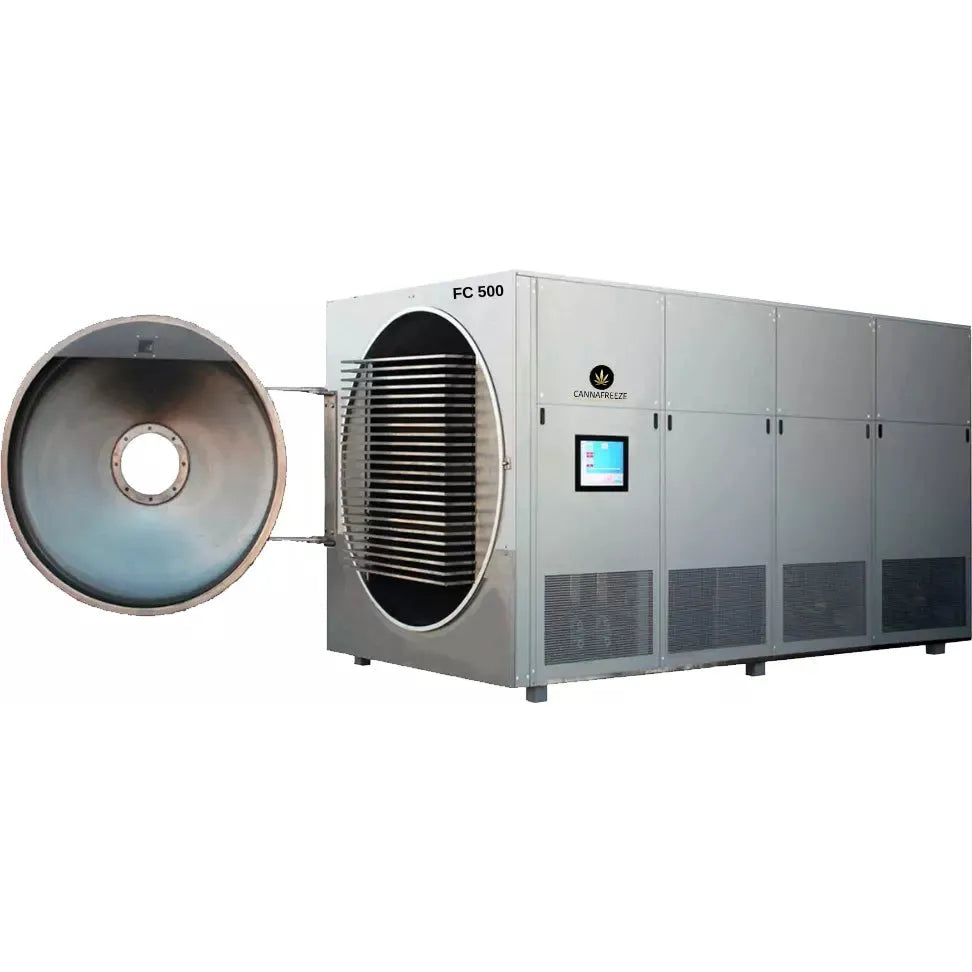

CannaFreeze FC 500 Freeze Dryer & Chiller
?
Then it’s time you get the CannaFREEZE FC500.
The FC500 is a revolutionary Freeze Dryer designed to help you take your buds from harvest to curing in just 24 hours.
Using Freeze Drying technology focused on cannabis, the FC500 makes your buds more potent with better Terpene preservation.
The FC500 has a capacity of up to?785 lbs and a shelf area of 549 square feet, perfect for those who want to go big-time in freeze-drying.
The FC500 method is safe and sanitized, as it uses food and pharmaceutical grade stainless steel for the chambers, shelves, and trays. Your buds are safe inside, as the FC500 locks your buds in a sealed container under a vacuum.
The FC500 also eliminates common curing problems, such as molds and pest contamination.
With your buds done faster, and with better quality, you quickly meet the demands of dispensaries, and consumers.
Features
Fast Curing without the Challenges
The FC500 can cure up to?785 lbs of your favorite strains in 24 hours, without dealing with curing problems like molds and pest contamination.
Enough space for the commercial-scale grower
You get enough space to freeze dry your buds, as the FC500 gives you up to 549 square feet of space with 23 shelves and 2.36 inches of shelf spacing
Protecting you and your buds
The FC500 uses food and pharmaceutical grade stainless steel for components and protects your buds with a vacuum seal.
Save Money and get Investments back quicker
The FC500 requires less space than having a dedicated drying room. With your buds cured faster, you get an earlier return of investment.
Highlights?
- Freeze Dry up to 785 lbs in 24 hours
- 549 square feet of shelf space
- Pharmaceutical and food grade stainless steel
- Vacuum seal
- Less space needed
- Faster ROI
Specifications
| Ice Condenser Capacity | 1,499 lbs |
| Ice Condenser Performance | 1,234 lbs/24 Hrs |
| Ice Condenser Temperature | -103 °F |
| Defrost | Hot Gas |
| Shelf Dimensions | 67 x 51 Inches |
| Number of Shelves | 23 + 1 |
| Shelf Area | 549 Sq Feet |
| Shelf Spacing | 2.36 Inches |
| Shelf Temperature | 85°F to + 194°F |
| Refrigeration | Two Stage |
| Cooling Systems | Water Cooled |
| Unit Dimensions | 94.5 x 86.6 x 196.9 In H x W x L |
| Refrigerant | R-507 (NON-CFC) |
| Vacuum | Pfeiffer Duoline 255 |
| Electrical Specs | 460/480 Volt 50/60 Cycle 3 Phase+ Neutral |
| Amperage | 250 Amp |
| Weight | 22,046 lbs |
| Freight | 40 Ft. Container |
Chiller Specifications
?
MODEL FC 500 -120 KW CHILLER
?
General Data
?
| Cooling Circuits | 2 |
| Compressors | 4 - Scroll |
| Capacity Control | 0-25-50-75-100% |
| Power | 460/3/60 |
| Fans | 2 – Axial |
| Condenser Air Flow | 25,895 cfm |
| Power (each) | 2.5 kW |
| Available Static Pressure | 0 “wc |
| Tank Volume | 132 gal |
| Length | 130 in |
| Width | 49.4 in |
| Height | 85.0 in |
| Weight | 3,634 lb |
| Amperage | 84 A |
?
?
Performance
| Refrigerant | R410A |
| Hydraulic Kit | P3 |
| Inlet Water Temperature | 69°F |
| Outlet Water Temperature | 59°F |
| Glycol Type | 25% Propylene Glycol |
| Ambient Temperature | 95°F |
| Cooling Capacity | 34.5 Tons/414,000 Btu/Hr |
| Total Absorbed Power | 42.2 kW |
| Evaporator Water Flow Rate | 85.9 gpm |
| Available Head Pressure | 39 psi |
| Min Ambient Temperature | 23°F |
| Max Ambient Temperature | 109°F |
?
Warranty
12 months from date of delivery, parts and labor. (Service charges for travel time not covered.)
