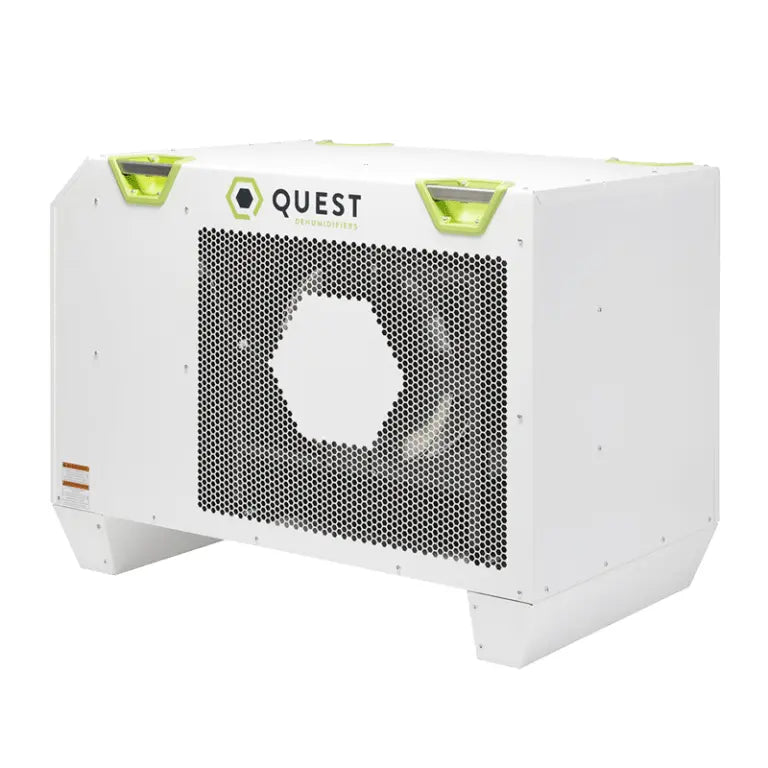

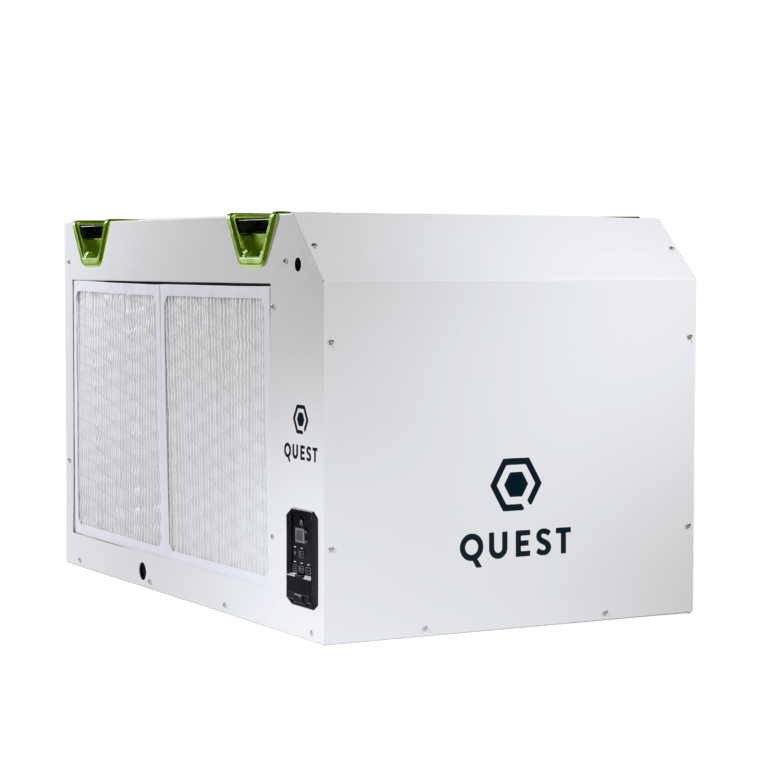

Quest 506 Dehumidifier — 506 Pints/Day Capacity, Ultra High Efficiency for Large Spaces - Perfect for Basements, Garages, and Commercial Use

Quest 506 High-Efficiency Dehumidifier — 506 Pints/Day - 220-240V

Discover the epitome of efficient moisture control with the Quest 506 High-Efficiency Series Dehumidifier.

Made for the meticulous entrepreneur, this dehumidifier captures compact design and efficiency, making it the perfect choice for medium-sized spaces across agriculture, industrial manufacturing, and food and beverage sectors.

The Quest 506 isn’t just about removing excess humidity but enhancing the quality of your indoor environment. The M-CoRR technology ensures efficient dehumidification at 506 pints daily while consuming less power. The premium MERV-13 filtration system prevents bacteria, molds, and other contaminants from developing for safer and cleaner air quality.

The Quest 506 dehumidifier features a digital control panel that makes usage easy and offers a dark mode to reduce brightness during nighttime operations. The plug-n-play setup eliminates any installation hassles, making it a straightforward solution to your humidity woes. You can hang the Quest506 dehumidifier with compatible hooks or leave it freestanding.

The Quest 506 also complies with California Title 24 requirements, a testament to its energy efficiency and commitment to meet regulatory standards.

Quest 506 High-Efficiency Features

M-CoRR Technology

The Multi-Coil Refrigeration allows the Quest 506 to achieve a remarkable 506 pints capacity without overworking it.

MERV 13 Filtration

Thanks to the superior MERV-13 filtration on the Quest 506, you get healthier air quality, effectively removing dust, pollen, mold, and bacteria.

Digital Control

The Digital Control on the Quest 506 makes operation effortless and comes with a self-diagnostic system and a dark mode to reduce eye strain in the dark.

Title 24 Compliance

The Quest 506 is Title 24 compliant, making it one of the energy-efficient dehumidification systems available today.

Durable Construction

The Quest 506 is made with anti-corrosive material, making it ideal for dehumidifying work.

Flexible Installation

Suspend the Quest 506 or leave it freestanding; the choice is yours, thanks to the compact design.

---

Quest 506 High-Efficiency Series Highlights

• 506 pint capacity per day
• 280 CFM
• M-CoRR Technology
• MERV-13 Filtration
• Digital Control with Night Mode
• Anti-corrosion base
• Plug and Play Operation
• Can be suspended or freestanding
• Title 24 Compliant
• UL-Rated
• ETL-Listed

---

Quest 506 High-Efficiency Specifications

CFM:	1500 @ 0.0” WG
POWER:	2700 Watts
SUPPLY VOLTAGE:	220–240 VAC 1 Phase - 60 Hz
CURRENT DRAW:	11.0A
RATED CURRENT DRAW: (104 F | 36%)	13.3A
MINIMUM CIRCUIT AMPACITY (MCA):	19A
MAXIMUM OVERCURRENT PROTECTION	30
RECOMMENDED BREAKER SIZE:	20A
ENERGY FACTOR (L/KWH):	3.8 L/kWh
OPERATING TEMP:	56 F Min – 95 F Max
WATER REMOVAL (PINTS/DAY):	506
EFFICIENCY (PINTS/KWH):	8.1
AIR FILTER (MERV-13):	Size: 18” x 20” x 2”
POWER CORD:	14ga 10’, NEMA 6-20P
DRAIN CONNECTION:	3/4” Threaded NPT
REFRIGERANT TYPE:	R410A
REFRIGERANT AMOUNT:	4 lb 8 oz
WIDTH:	28.9”
HEIGHT:	34.1”
LENGTH:	44.8”
WEIGHT:	280 lbs
SHIPPING WEIGHT	340 lbs

---

Quest 506 High-Efficiency Installation Options



FREESTANDING UNIT

CAN BE MOUNTED OVERHEAD WITH USE OF 3/8″ THREADED ROD



P-TRAP REQUIREMENTS

---

Quest 506 High-Efficiency Manuals

---

Quest 506 High-Efficiency Warranty

Quest offers a 5-year warranty. This does not include user error or operator abuse.
