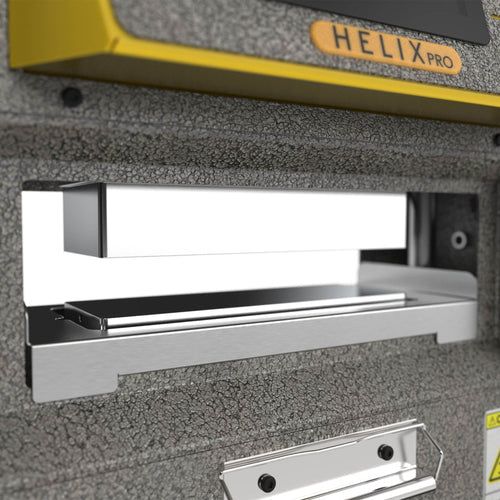

PurePressure Helix Pro 5 Ton Rosin Press
For those looking for a small-sized rosin press that can produce quality rosin, the Pure Pressure Helix Pro is right for you.
Using the tried and tested design of its bigger brothers, the Pikes Peaks, the Helix Pro gives you the same quality of rosin in a small package.
The Helix Pro uses the trademark Pressware Technology of Pure Pressure, which lets you set the right amount of temperature and pressure in each press.
Don’t let its size fool you. Using its two (2) premium 6061 aluminum heat plates, the Helix Pro can press up to 12 grams of flowers, or 20 grams of Kief or Hash in one go with up to five (5) tons of force using its lead screw twist technology.
While the Helix Pro is a manual press, the Pressware Technology also gives you an accurate measurement of the amount of pressure exerted. Adjust pressure and temperature in small increments to get the right settings for your strains.
Once you have found your sweet spot, save it in 1 of the 29 presets slots so you can recall and get consistent results.
Standing only 21.4 inches tall, the Helix Pro fits perfectly on your counter, and can be taken anywhere, without the bulk.
All Helix Pro units are handmade* so you can expect topnotch quality control in every machine.
Features
Pressware Technology
This trademark technology gives full control over the pressure and temperature in each press. Use the built-in touchscreen interface and proprietary software for total control and consistency.
High Power
Press up to 12 grams of flowers or 20 grams of Kief or Hash in one go, using its premium 6061 aluminum heat plates with independent heating for each plate.
Quick Memory
Save and recall up to 29 temperature and pressure presets for your most used strains.
Compact Design
Standing only 21.4 inches high, and fits on the counter or in the trunk of your car.
Durable and easy to maintain
The Helix Pro is made of powder-coated steel. Firmware updates and diagnostic tools for the controls are available through the Pure Pressure software for Mac and PC.
Made by Hand
Each Helix Pro is made by hand, ensuring better quality control in each extractor.
Highlights
- Up to 5 tons of force (10,000 lbf) output
- No air compressor required, manual twist force application
- Built with two 2.5" x 7" 6061 aluminum heat plate assemblies, each with independent thermocouples
- 0°F - 300°F temperature range
- Temperature accuracy to within 1 degree Fahrenheit
- Powder coated housing
- Measures 14" D x 21.4" T x 15.5" W
- Weighs 70 lb
- Patent pending
- 115v version electrical information: 4 amps peak draw, 460 watts, 50/60 Hz, 5-15P plug, no dedicated circuit required
*All Helix Pro units are made to order, and need two weeks lead time before shipping
Pressing Tips
Which Material Should I Use?
Yields range significantly and depend largely on the quality of the materials used.
- Trim: 3% - 8%
- Shake: 8% - 15%
- Flower: 15% - 30%
- Kief / Dry Sift: 30% - 60%+
- Bubble Hash / Hash: 30% - 70%+
*Adequate application of pressure is important to achieve optimal yields and these figures are based on averages tests. Results may vary and depend heavily on your material as well as the operator.
Which Micron Bag To Use?
Depending on your material, the proper micron bags are suggested but results will always vary.
For kief, dry sift, hash, and bubble hash, use a 36 micron or 72-micron bag.
72-micron rosin bags will offer higher yields compared to 36-micron rosin bags, but the 36-micron bags will provide the highest quality product.
For the flower, trim, and shake, use a 115 micron or 90-micron bag.
You will get the highest yield from a 115-micron rosin bag compared with a 90-micron rosin bag, but the 90-micron bags will give you more filtration and slightly higher quality product.
36 micron - Most filtration available, highest quality output rosin for use with kief, dry sift, hash, and bubble hash
72 micron - High level of filtration, increased yields over 36 microns when pressing kief, dry sift, hash, and bubble hash
90 micron - A higher level of filtration for use with flower, trim and shake rosin pressing
115 micron - Ideal level of filtration and high yielding for use with flower, trim and shake rosin pressing
What Temperature Is Ideal?
- Lower temperatures (200°F- 300°F) = more flavor/terpenes, less yield, end material is more stable (shatter-like consistency)
- Higher temperatures (300°F- 350°F) = less flavor/terpenes, more yield, end material is less stable (sap-like consistency)
How Much Pressure Should I Use?
There is no magic number for how much you need to press but most people use the formula of press pounds/plate surface area.
For example:
A 10-ton press = 20,000 lbs. If you have a 3"x5" plate = 15 square inch.
Hence, 20,000/15 = 1,333 PSI
*These numbers serve as a guide only. Results will always vary depending on temperature and material as well the press you choose.
Warranty
For the Helix and Helix Pro rosin presses, PurePressure guarantees the following warranty coverage:
- Lifetime end-user support.
- 2 year limited warranty against manufacturing defects for structural components (frame, truss, and support legs).
- 1 year limited warranty against manufacturing defects for the entire press including electronic components.
Pure Pressure does not accept returns or exchanges unless the item purchased is defective. If you receive a defective item, please contact us with details of the product and the defect.
