NutriFreeze FC R 100 Freeze Dryer and Chiller Machine for Home & Commercial Use - Perfect for Food Preservation, Pharmaceuticals, and Laboratory Applications
Free shipping on all orders over $50
7-15 days international
21 people viewing this product right now!
30-day free returns
Secure checkout
95251768
Description
Description
- Type
Freezer Dryer - Drying Capability
220 lbs/ 16-24 hr - Warranty
1 Year

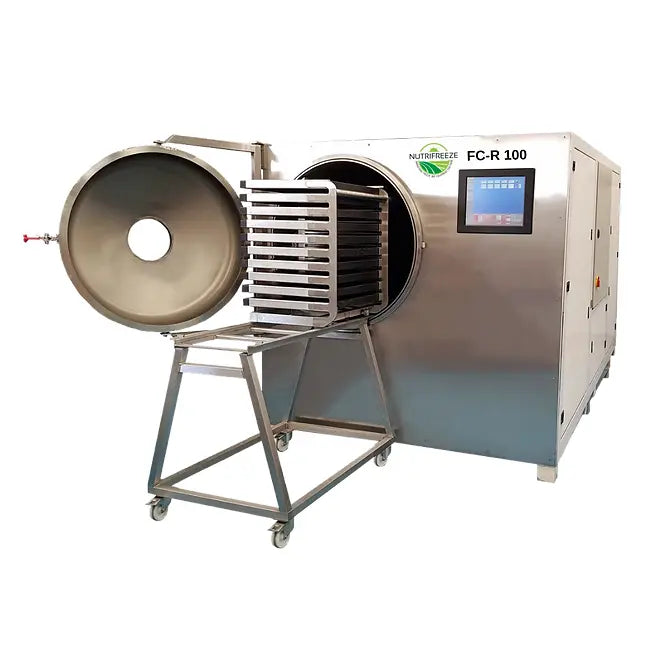

NutriFreeze FC-R 100 Freeze Dryer and Chiller
The NutriFreeze FC-R 100 Programmable freeze dryer delivers perfect food preservation for large operations.
The FC Range of short cycle freeze dryers use conductive heat energy to efficiently drive ice crystals into water vapor. Conductive heat energy does not require high shelf temperatures.
The FC-R 100 Freeze Dryer features 27 trays to provide a total capacity of 220 lbs per run.
This freeze dryer offers programmable controls so you can easily set and come back for your goods when the process is done. The FC-R 100 Freeze Dryer features a touch-sensitive membrane keypad to give you easy access to the settings.
Features
220-pound capacity
The FC-R 100 Freeze Dryer can handle up to 220 lbs. of material distributed with its 27 trays.
Quick Process
The FC-R 100 Freeze Dryer can preserve food within 24 hours while preserving natural nutrients.
Programmable Control
Get complete control over the settings by programming the freeze dryer based on the food you preserve.
.
Food Grade
The FC-R 100 Freeze Dryer is made of food-grade stainless steel to protect your food from contamination.
Highlights
- Freeze-dries in 24 hours
- 27 Trays
- 220 lbs capacity
- 108 square feet total tray area
- 3.15-inch tray spacing
- 19-inch touchscreen
- Vacuum and Temperature readout
- Programmable Control
- Food-grade stainless steel
- Trolley included
Specifications
| CONTROL SYSTEM: | Fully Programmable |
| ICE CONDENSER CAPACITY: | 330 Pounds |
| ICE CONDENSER PERFORMANCE: | 286 Lbs/24 Hrs |
| ICE CONDENSER TEMPERATURE: | -67°F/-55°C |
| DEFROSTING-END OF LOAD: | Hot Gas |
| NUMBER OF SHELVES: | 9 Shelves (27 Trays) |
| TOTAL SHELF AREA: | 108 Square Feet |
| LOADING SYSTEM: | Cassette/Trolley |
| SHELF TEMPERATURE: | Up to +266 F/+130 C |
| REFRIGERATION: | Two Stage Compressor |
| REFRIGERANT: | R-404A (non-CFC) |
| COOLING SYSTEMS: | 30 KW Chiller-Water/Glycol |
| VACUUM SYSTEM: | Pfeiffer Duo 65 |
| ELECTRICAL SPECIFICATIONS: | 460/480 Volt, 60 Cycle, 3 Phase + Neutral |
| AMPERAGE: | 75 Amp Dedicated Line |
| UNIT DIMENSIONS: | 126 x 71 x 79 Inches L x W x H |
| WEIGHT: | 5512 Lbs |
Warranty
12 months from date of delivery, parts and labor. (Service charges for travel time not covered.)
