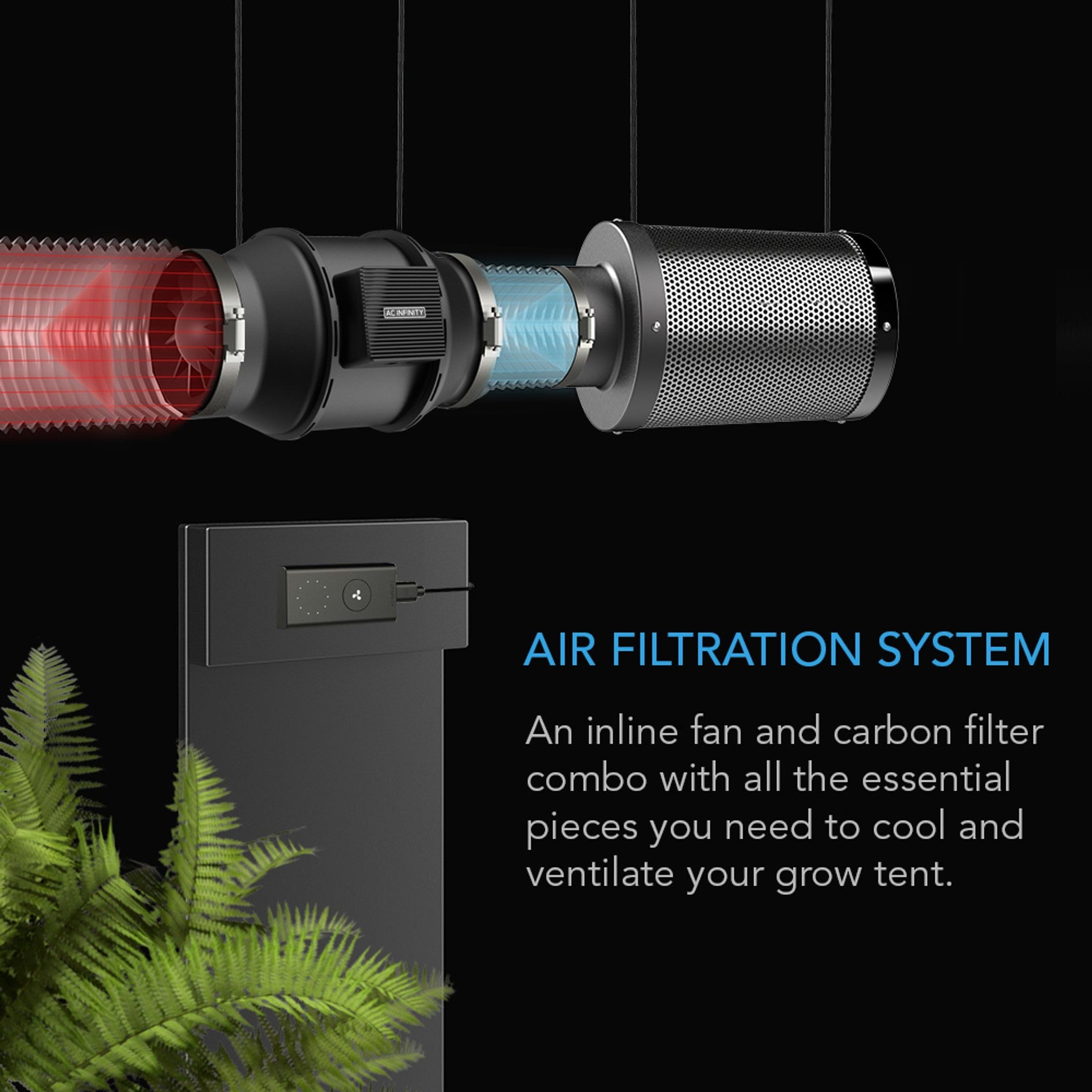

AC Infinity 4" Air Filtration Kit - Inline Fan w/ Speed Controller, Carbon Filter & Duct System
The AC Infinity 4-inch Air Filtration Kit is a complete system that ensures air purity inside your grow tent.?
Each 4-inch Air Filtration Kit comes with the CloudLine Lite Fan with a ten-speed speed control and an activated charcoal filter that uses 1200+ IAV activated charcoal to mitigate odors.
This kit is easy to install and may be used for intake or exhaust.
Duct size: 4"
Features
CloudLine Lite Fan
The CloudLine Lite Fan is a simple inline fan that you can use for intake or exhaust and includes the AC Infinity 10-speed controller.
Activated Charcoal Filter
The four-inch Air Filtration Kit uses a 1200+ IAV-activated charcoal to absorb any odors that may escape your grow tent.

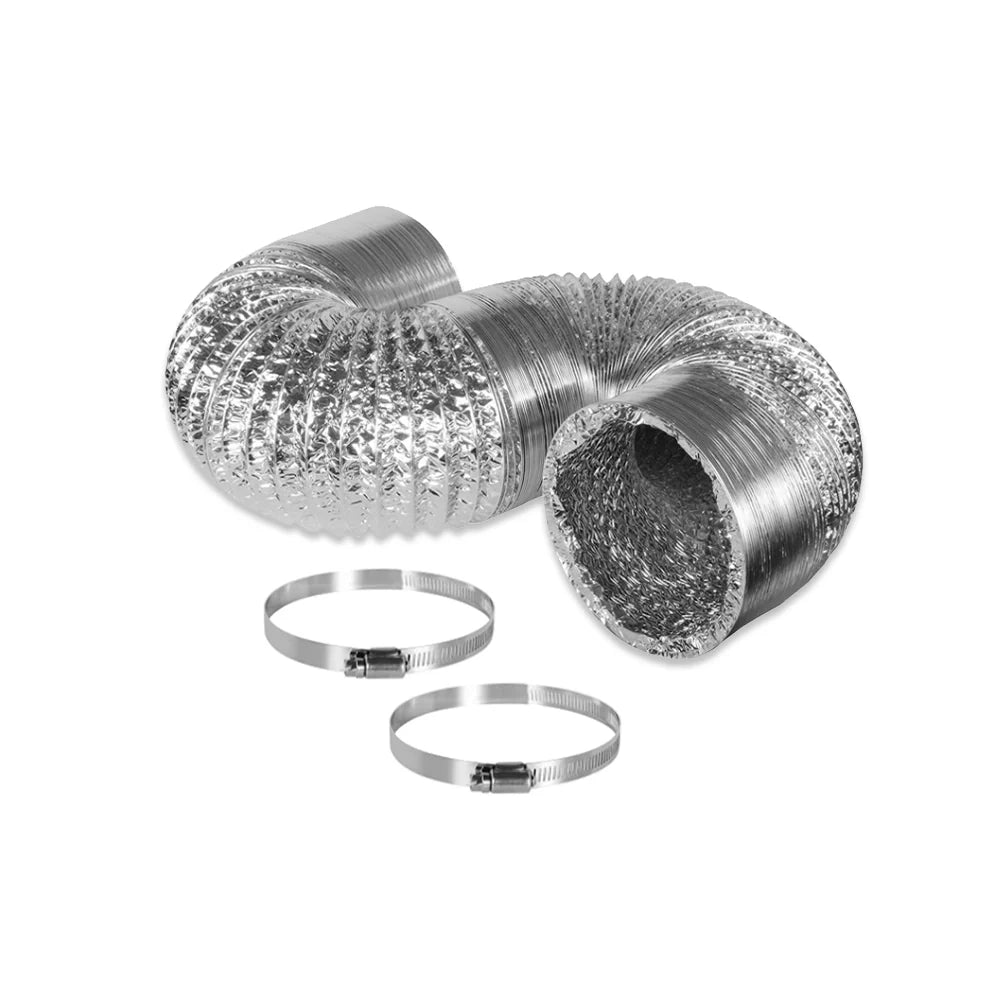

Durable Ducting
The ducting system uses four layers of dual PVC thermoplastic and flame-resistant aluminum that are tear resistant and reinforced with steel wires.
Easy to install
The four-inch Air-Filtration Kit is easy to install and includes attachments to add to your grow tent.
Highlights
- Four-inch ducting
- CloudLine Lite Fan included?
- 10-speed controller?
- 1200+ IAV Activated Charcoal Filter
- Dual PVC Thermoplastic and aluminum layers
- Easy to install
- 165 CFM
- 38 mm Carbon?
- 25 feet ducting
Specifications
| Duct Size | 4" |
| Total Dimensions | 7.48 x 11.89 x 6.93 in. (19.0 x 30.2 x 17.6 cm) |
| Mounting Hole-To-Hole Distance | 3.15 x 2.36 in. (8.0 x 6.0 cm) |
| Screw Hole Size | ? 0.197 in. (? 0.5 cm) |
| Cord Length to Controller | 72 in. (6 feet) |
| Cord Length to Plug | 72 in. (6 feet) |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 2.70 x 1.37 x 0.55 in. (6.9 x 3.5 x 1.4 cm) |
| Product Performance and Technical Specs - Fan Unit | |
| Total Airflow (Fan Only) | 165 CFM |
| Total Noise | 29 dBA |
| Max Speed | 2800 RPM |
| Static Pressure | 324 Pa |
| Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Max Power Draw | 25 W |
| Average Power Usage | 18 W |
| Current | 0.55 A |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 0 to 140°F |
| Ingress Protection | IP 44 |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| Fan Quality Approvals | CE, RoHS |
| Product and Mounting Dimensions - Carbon Filter | |
| Duct Opening Size | 4" |
| Total Dimensions | 13.35 x 6.97 in. (33.3 x 17.7 cm) |
| Flange Length | 1.46 in. (3.7 cm) |
| Product Performance and Technical Specs - Carbon Filter | |
| Flange Material | Aluminum |
| Flange Design | Reversible |
| Mesh Material | Galvanized Steel |
| Carbon Type | Australian Virgin RC412 |
| Carbon Grade | 1200+ IAV |
| Carbon Thickness | 38mm |
| Maximum Airflow | 210 CFM |
| Product Dimensions - Ducting | |
| Ducting Size | 4 in. (10.2 cm) |
| Length | 300 in. (25 ft) |
| Product Performance and Technical Specs - Ducting | |
| Outer Layer | PVC Thermoplastic |
| Inner Material | Aluminum Foil |
| Internal Structure | Spiral Steel-Wire |
Downloads
Warranty
All sales final. AC Infinity?comes with a two-year warranty.?
Please note this does NOT cover non-durable goods or consumables designed to be recurrently used.
