AC Infinity Cloudline Lite A6 Inline Fan System w/ Speed Controller - 6" Duct

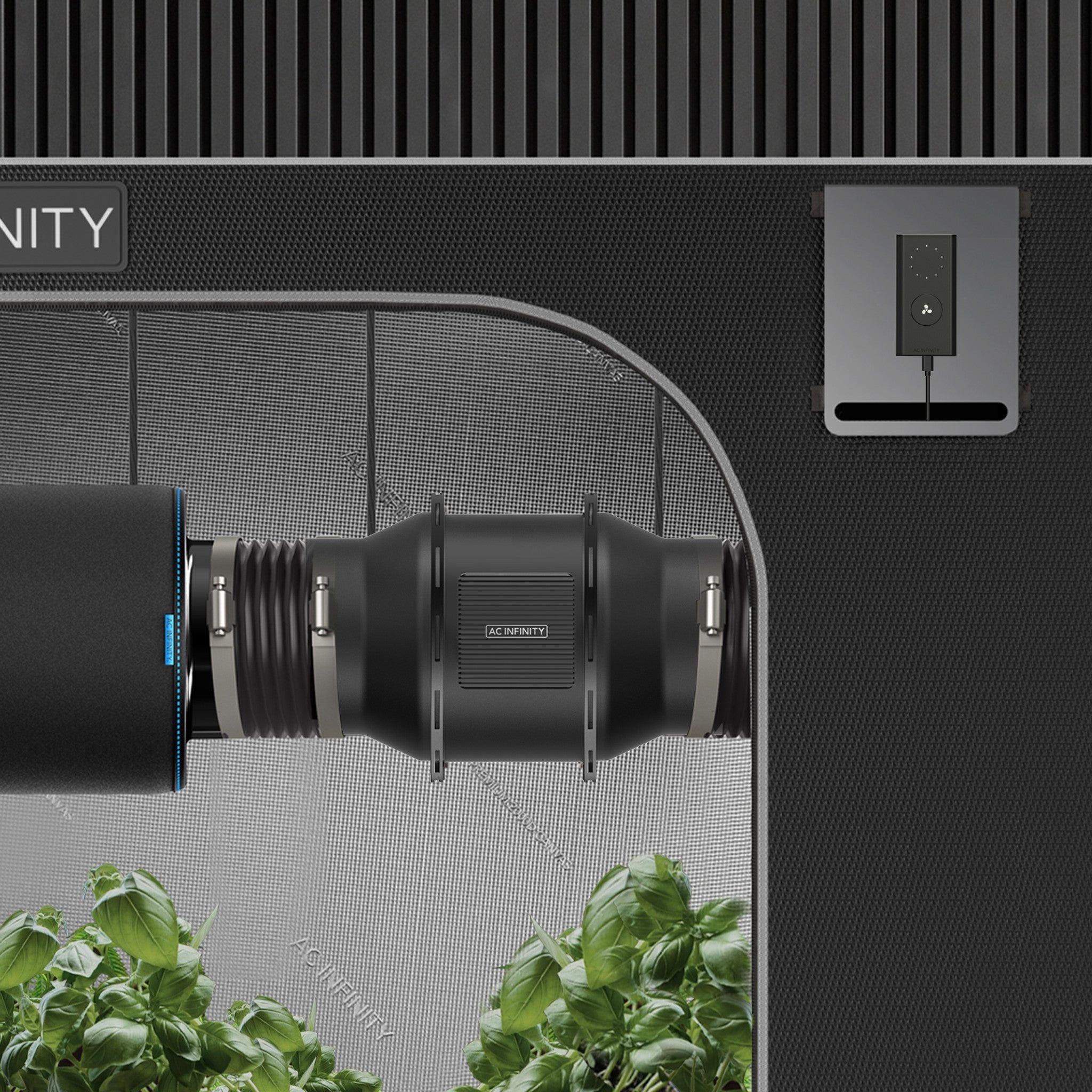

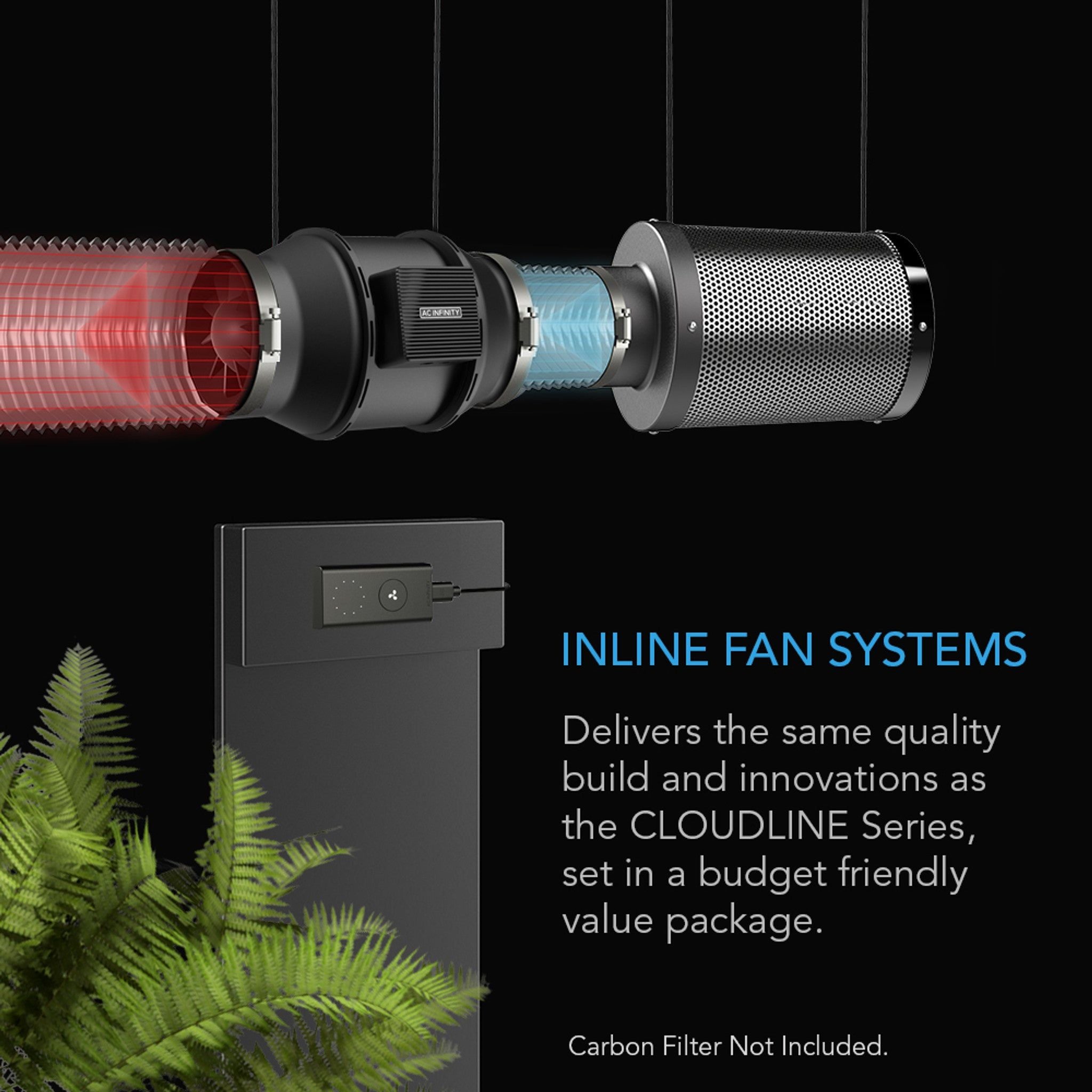

The CloudLine Lite A6 is an affordable inline fan that allows you to circulate air efficiently in your grow tent.?
The CloudLine Lite A6 features an inline mixed-flow design that ensures consistent airflow, even in high static-pressure situations. This fan may bring in fresh air or blow out odor from the grow tent.?
Each fan comes with a wired speed controller, with the option to upgrade to the Controller 69 system.
Duct Size: 6"
Features

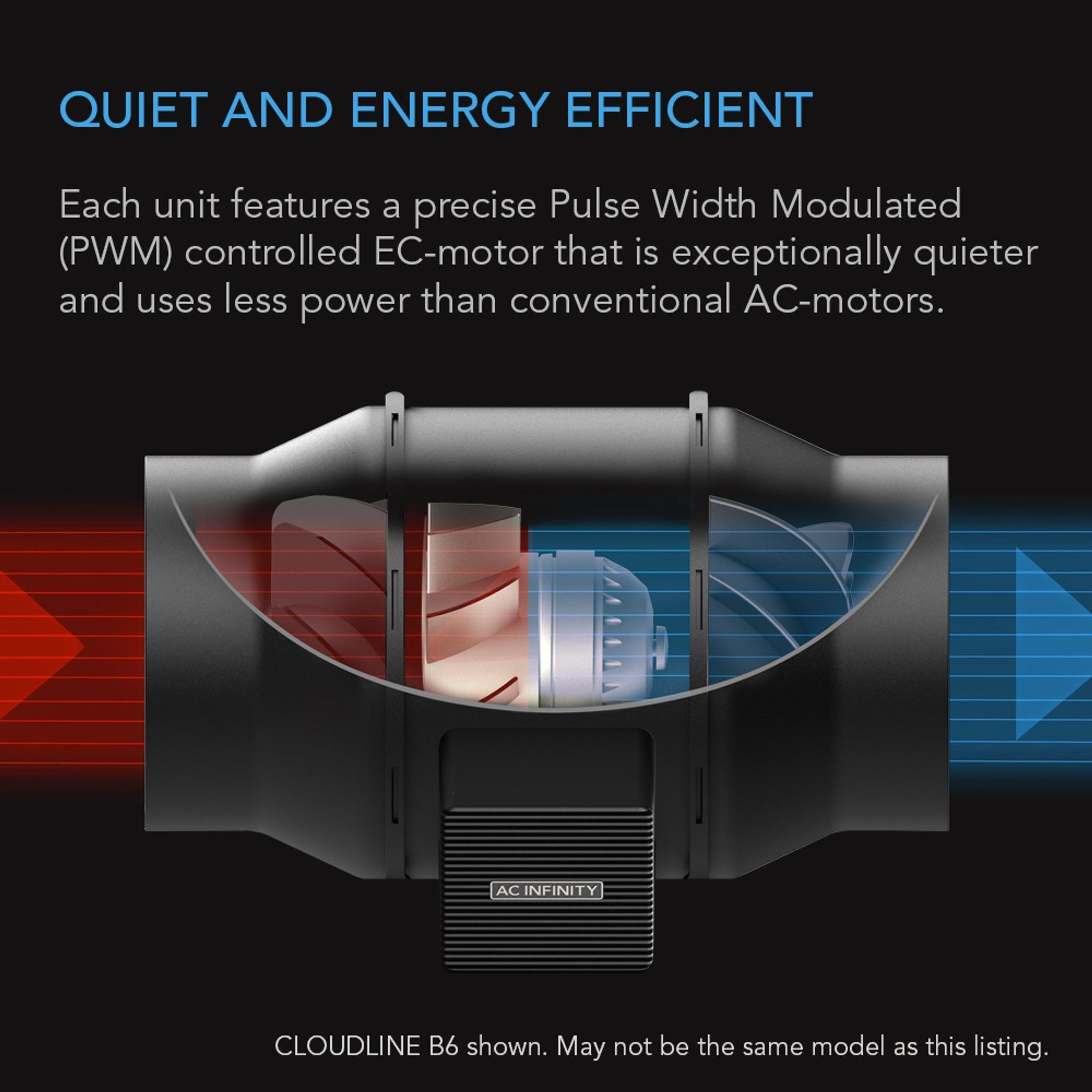

Quiet Operation
The CloudLine Lite A6 operates quietly, so you don’t disturb people when growing at home.?
Mixed-flow Design
The CloudLine Lite A6 can bring fresh air or expel odors inside the tent.?

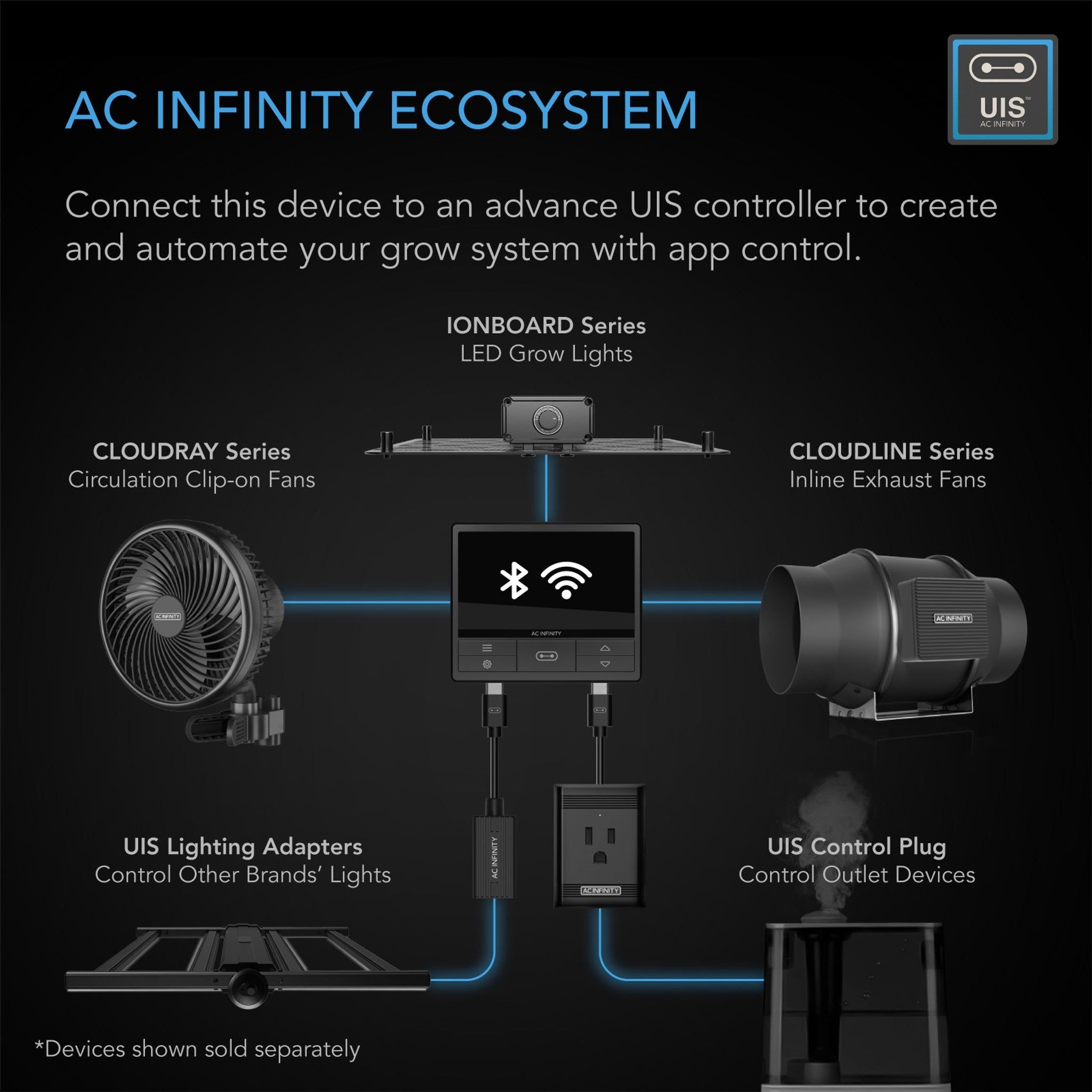

CloudLine Smart Controller-compatible
Upgrade or integrate the CloudLine Lite A6 with any of the CloudLine controllers to get better access to the controls of the fan.
Easy Maintenance
The impeller and blades of the CloudLine Lite A6 can be detached easily for cleaning and maintenance.
Highlights
- Six-inch duct
- Mixed-flow Design
- CloudLine Controller Compatible
- 352 CFM Airflow
- Horizontal or Vertical Mounting
- Dual Ball Bearings
Specifications
| Product and Mounting Dimensions - Fan Unit | |
| Duct Size | 6" |
| Total Dimensions | 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm) |
| Mounting Hole-To-Hole Distance | 3.15 x 2.36 in. (8.0 x 6.0 cm) |
| Screw Hole Size | ? 0.236 in. (? 0.6 cm) |
| Cord Length to Controller | 72 in. (6 feet) |
| Cord Length to Plug | 72 in. (6 feet) |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 2.70 x 1.37 x 0.55 in. (6.9 x 3.5 x 1.4 cm) |
| Product Performance and Technical Specs | |
| Total Airflow | 352 CFM |
| Total Noise | 34 dBA |
| Static Pressure | 394 Pa |
| Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Max Power Draw | 61 W |
| Average Power Usage | 35 W |
| Current | 0.85 A |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Ingress Protection | IP 44 |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
| Fan Quality Approvals | CE, RoHS |
Downloads
Warranty
All sales final. AC Infinity?comes with a two-year warranty.?
Please note this does NOT cover non-durable goods or consumables designed to be recurrently used.
