AC Infinity Cloudline T6 Inline Fan System with Smart Controller - 6 Inch Duct for Grow Tents, Hydroponics & Home Ventilation | Quiet High CFM Airflow
Free shipping on all orders over $50
7-15 days international
16 people viewing this product right now!
30-day free returns
Secure checkout
61198482
Description
AC Infinity Cloudline T6 Inline Fan System w/ Smart Controller - 6" Duct
The CloudLine T6 gives you the essentials to ensure a proper environment in your grow tent.?

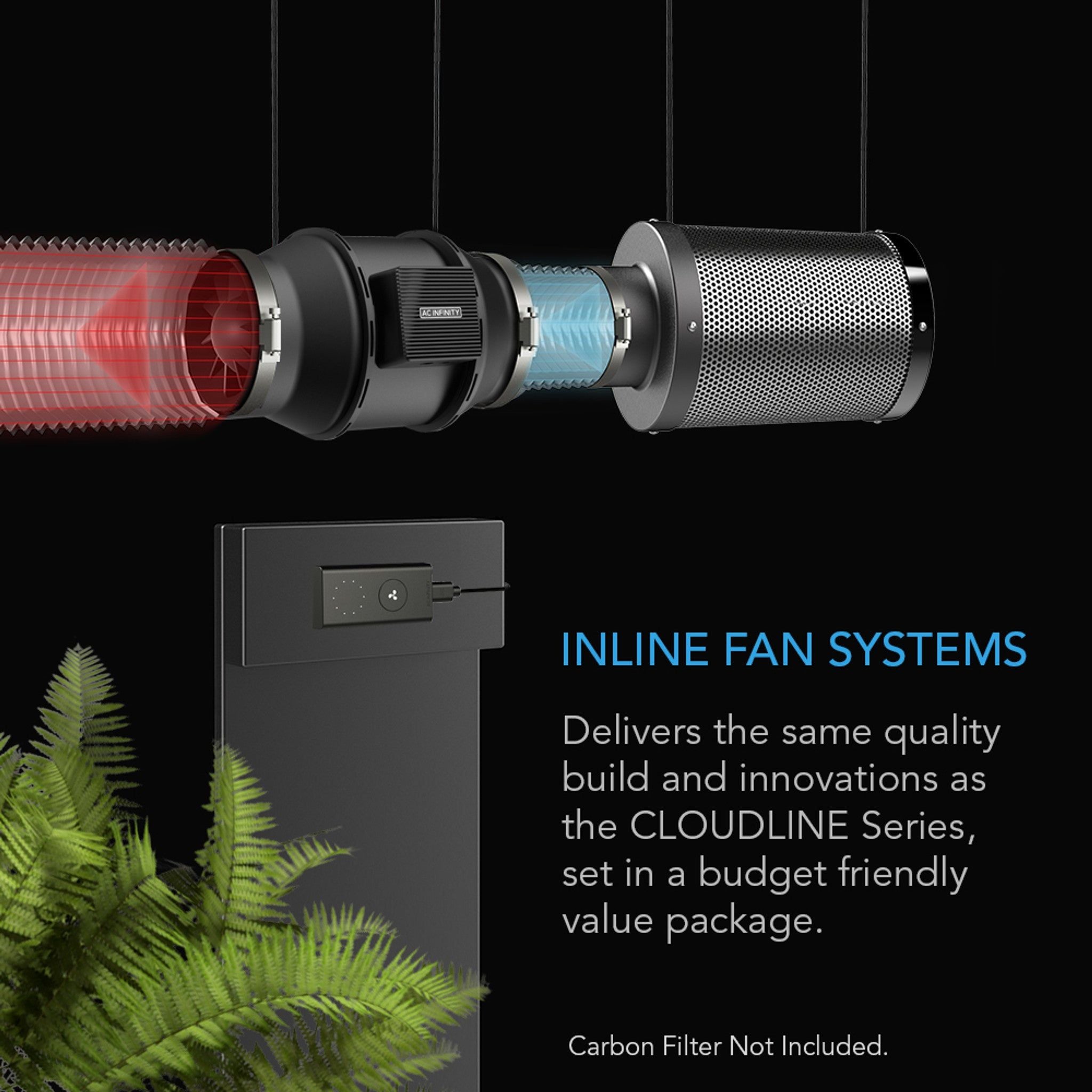

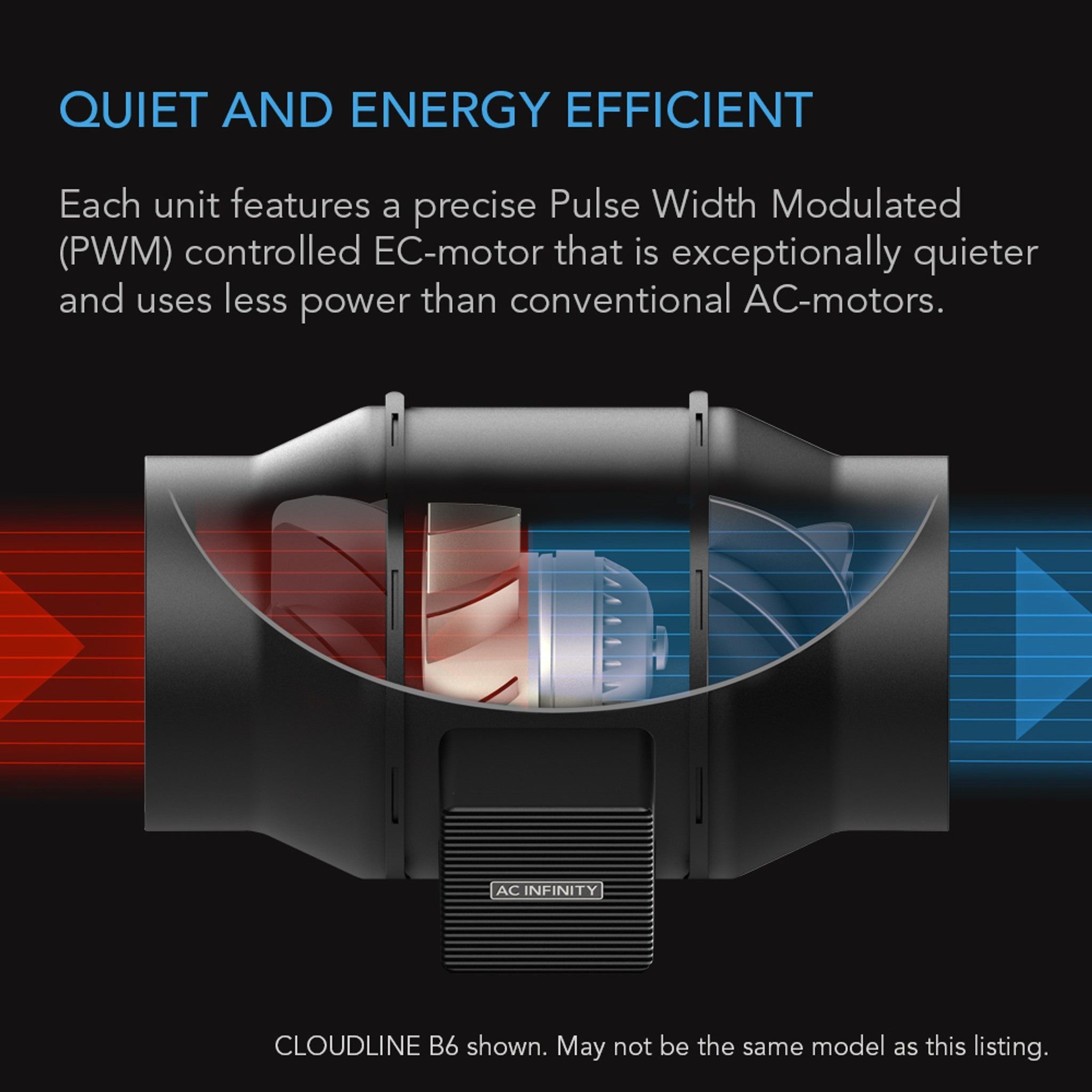

The CloudLine T6 features an inline mixed-flow design that ensures consistent airflow, even in high static-pressure situations. This fan may bring in fresh air or blow out odor from the grow tent.?
Features smart programming that not only has basic temperature and humidity triggers, but also allows you to set dynamic fan speeds that would respond based on their changes.
This controller can connect to up to four UIS devices which includes products like the CLOUDLINE, CLOUDRAY, and IONBOARD Series.
Duct size: 6"
Features
Quiet Operation
The CloudLine T6 operates quietly, so you don’t disturb people when growing at home.?
Temperature and Humidity Sensors
The CloudLine T6 lets you keep track of heat and humidity so that you can make adjustments in your grow tent.?
CloudLine Smart Controller-compatible
Upgrade or integrate the CloudLine T6 with any of the CloudLine controllers to get better access to the controls of the fan.
Easy Maintenance
The impeller and blades of the CloudLine T6 can be detached easily for cleaning and maintenance.
Highlights
- Six-inch duct?
- Temperature and Humidity Sensors?
- Mixed-flow Design
- CloudLine Controller 69 Compatible
- 402 CFM Airflow
- 2800 Maximum RPM
- Horizontal or Vertical Mounting
- Dual Ball Bearings
Specifications
| Product and Mounting Dimensions - Fan Unit | |
| Duct Size | 6" |
| Total Dimensions | 7.87 x 12.60 x 8.35 in. (21.2 x 32.0 x 20.0 cm) |
| Mounting Hole-To-Hole Distance | 3.15 x 2.36 in. (8.0 x 6.0 cm) |
| Screw Hole Size | ? 0.236 in. (? 0.6 cm) |
| Cord Length to Controller | 240 in. (20 feet) |
| Cord Length to Plug | 96 in. (8 feet) |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) |
| Hole to Hole Distance | 4.71 x 2.64 in. (12.0 x 6.7 cm) |
| Screw Hole Size | ? 0.119 in (? 0.3 cm) |
| Display Size | 3.5 x 1.4 in. (9 x 3.5 cm) |
| Sensor Probe Length | 144 in. (12 feet) |
| Product Performance and Technical Specs | |
| Total Airflow | 402 CFM |
| Total Noise | 32 dBA |
| Static Pressure | 503 Pa |
| Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Max Power Draw | 64 W |
| Average Power Usage | 38 W |
| Current | 1.67 A |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Ingress Protection | IP 44 |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
Downloads
Warranty
All sales final. AC Infinity?comes with a two-year warranty.?
Please note this does NOT cover non-durable goods or consumables designed to be recurrently used.
