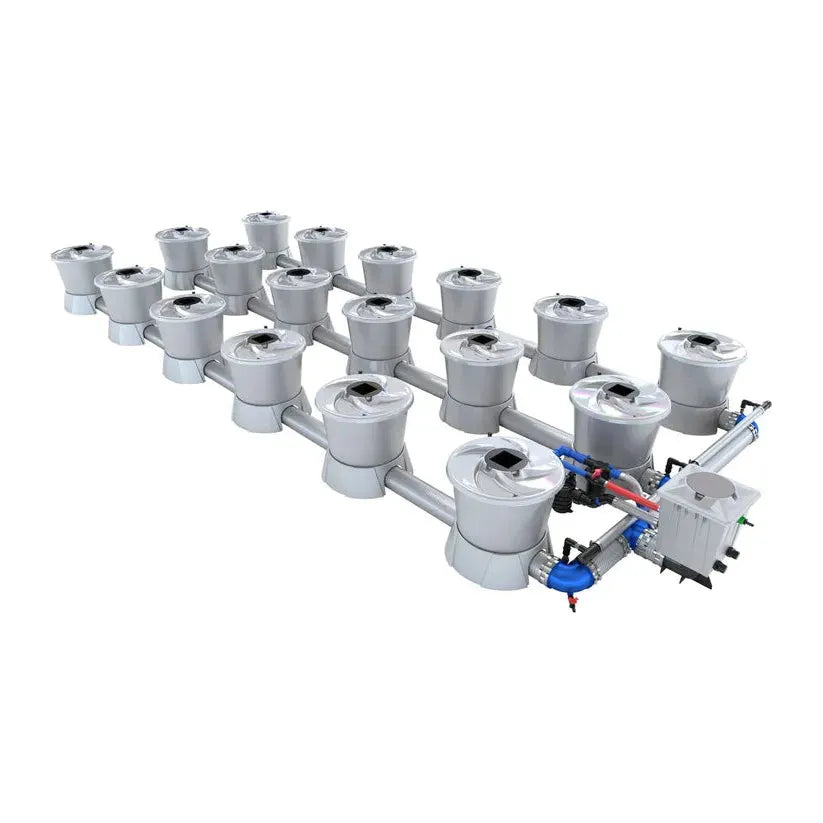

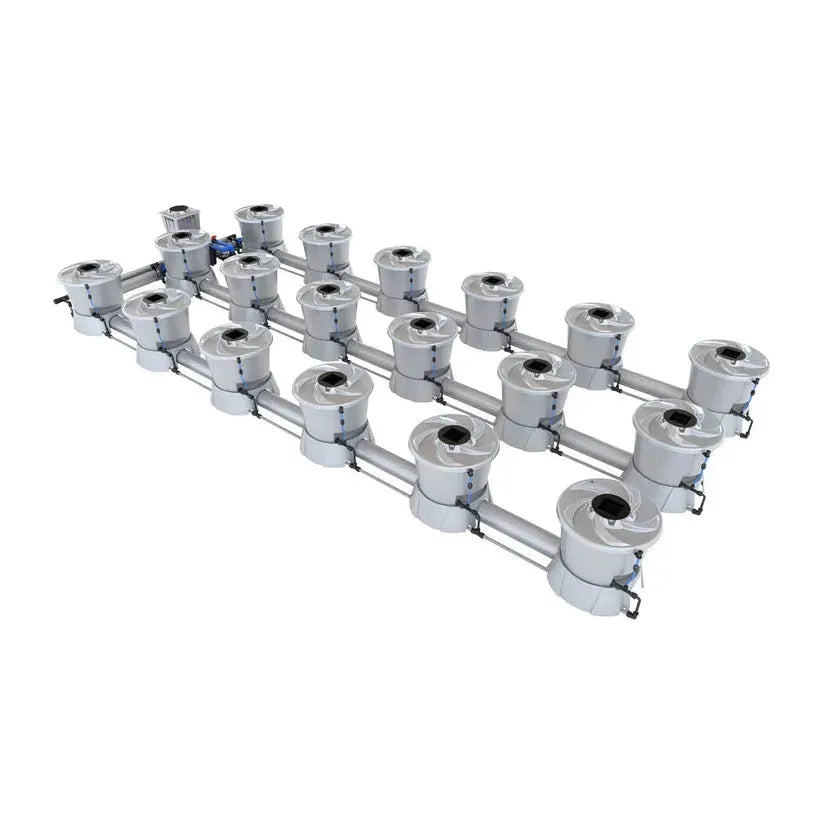

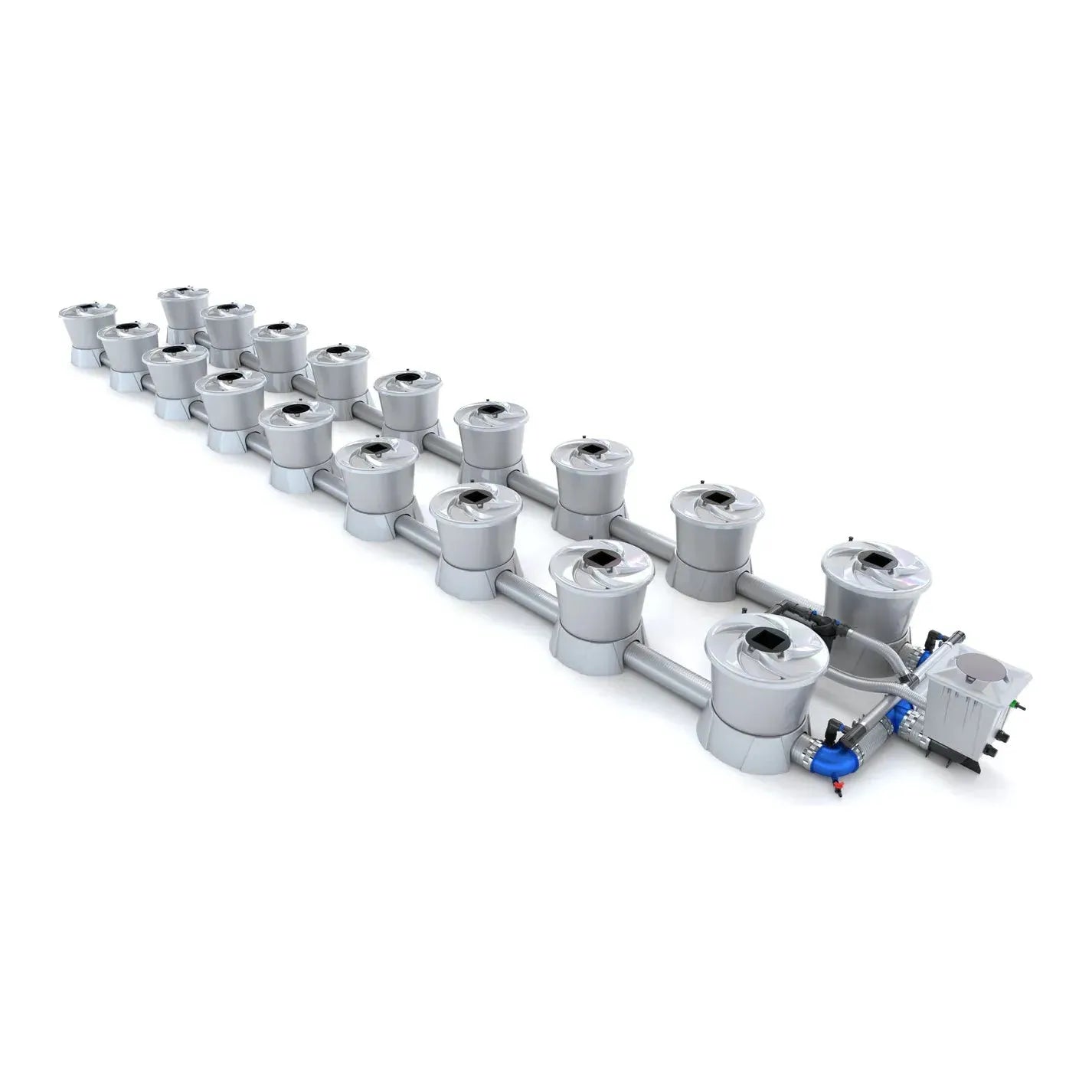

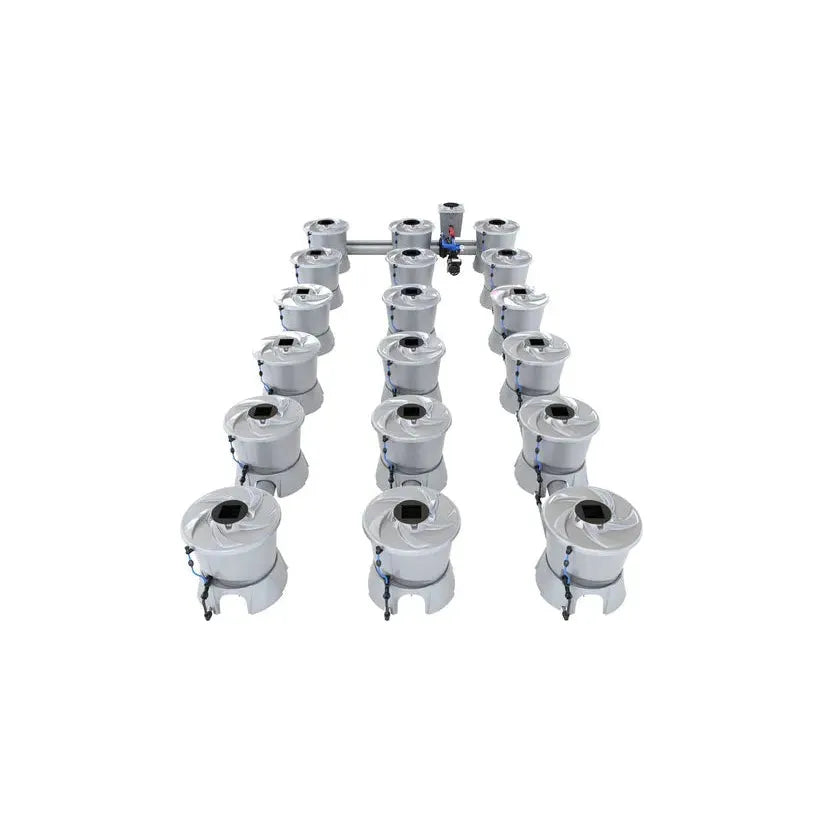

Alien Hydroponics V System Deep Water Culture (DWC) - 18 Pot Hydroponic Growing Kit for Indoor Plants, Herbs & Vegetables | Perfect for Home Gardening, Greenhouse & Urban Farming

Venturi Valve Technology

The V-System deep water culture kit uses Venturi Valve Technology to ensure healthier root zones by optimizing oxygenation.

Temperature Control

Reduce root rot chances with the built-in temperature control of the V-Sys hydroponic kit.

Modular Design

When you’re ready to expand your system, you can customize the layout up to four rows with ten pots in each row for optimal distribution in each pot.

Equal Nutrient Distribution

The V-System hydroponic kit ensures equal nutrient distribution so all plants grow healthy.

Alien Hydroponics V-System?18 Pot Highlights

• 15 gallon (58L) V-POT
• 18 V-Pots?
• Three rows?
• 1100-watt Jet-Stream Vortex pump - 3 Row
• 1500-watt Jet-Stream Vortex pump - 2 Row
• Total-drainage bases
• Venturi injectors
• Five-inch spiral tubing
• Five-inch Dual-Flow fittings
• Integrated filtration
• T304 Stainless clamps
• Push-fit feed connections
• Expandable up to four rows, ten pots per row

What is Included in the?Alien Hydroponics V-System?18 Pot?

• V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
• V-Pot 58L
• V-Pot Base
• V-Pot Lid
• V-Pot Lid Inspection Cover
• Square Net Pot
• V-Pot Clip
• Air Filter for V-SYSTEM Venturi, 6mm
• Silencer for Venturi
• Venturi Fitting
• Venturi Air Inlet Pipe 6mm Blue (2X 4")
• Nut 5"
• Washer 5" Green Silicone
• 5" Stainless Steel Clamp
• Distribution Tee 50mm
• DM Push-Fit Elbow 28mm V-SYSTEM
• DM Push-Fit Tee 28-15mm V-SYSTEM
• 1/2" Drain Cap Fitting
• Drain Tap 1/2"-16mm Barb
• Elbow 5" Barbed with Drain Point
• Elbow 5" Threaded Dual-Flow
• Filter Manifold Complete 50mm-2"
• Float Valve
• V-SYSTEM Header Pot 20L 50mm
• Silver Lid
• Header Pot Blank
• Hosetail 16mm-3/4" Female Green
• Venturi Inlet Fitting for 28mm Pipe
• Pipe 28mm White Rigid 1 Meter - Venturi Feed
• Pipe 50mm Silver 1 Meter
• Pipe 5" Silver Spiral 80cm
• Tee 5" Barbed
• Tee Threaded 5" Dual-Flow
• Threaded Tank Connector 1"
• Vortex Pump Inlet Manifold 50mm
• 1" Cap for Chiller Connections
• 50mm Straight Dual Flow Fitting
• Elbow 50mm Barbed
• Terminal Manifold Left 50mm
• Terminal Manifold Right 50mm
• 28mm Insert for 28mm Rigid Pipe
• 28mm Push-Fit Stop End
• Clamp Size 4
• 8mm Screwdriver for 5" Clamp
• Wrench 5"
• Wrench for Float Valve
• 8mm Socket for 5" Clamp
• Pipe Cutter 50mm
• Silicone Grease - Food Grade

• 1x V-SYSTEM Vortex Water Pump 370W 120V 13200 l/h
• 18x V-Pot 58L
• 18x V-Pot Base
• 18x V-Pot Lid
• 18x V-Pot Lid Inspection Cover
• 18x Square Net Pot
• 18x?V-Pot Clip
• 18x?Air Filter for V-SYSTEM Venturi, 6mm
• 18x?Silencer for Venturi
• 18x?Venturi Fitting
• 18x Venturi Air Inlet Pipe 6mm Blue (2X 4")
• 18x?Venturi Inlet Fitting for 22mm Pipe
• 19x Nut 5"
• 19x Washer 5" Green Silicone
• 44x 5" Stainless Steel Clamp
• 1x Dis22tribution Tee 40mm
• 3x DM Push-Fit Elbow 22-15mm V-SYSTEM
• 3x?DM Push-Fit Elbow 22mm V-SYSTEM
• 15x?DM Push-Fit Tee 22-15mm V-SYSTEM
• 1x Drain Cap 1/2"
• 1x Drain Tap 1/2"-16mm Barb
• 2x Elbow 5" Barbed with Drain Point
• 4x Elbow 5" Threaded Dual-Flow
• 1x Filter Manifold, Complete 40mm
• 1x?Float Valve
• 1x V-SYSTEM Header Pot 20L 40mm
• 1x?Silver Lid
• 1x?Header Pot Blank
• 1x?Hosetail 16mm-3/4" Female Green
• 18x Pipe 22mm Rigid 1 Meter - Venturi Feed
• 1x Pipe 32mm Red 1 Meter Spiral
• 4x Pipe 40mm Silver 1 Meter Spiral
• 19x Pipe 5" Spiral 80cm
• 1x Tee 5" Barbed
• 15x Tee Threaded 5" Dual-Flow
• 2x Threaded Tank Connector 1"
• 1x Vortex Pump Inlet Manifold40mm long
• 2x 1" Cap for Chiller Connections
• 1x T/Connector Straight 32mm
• 1x T/Connector Straight 40mm
• 1x Terminal Manifold Left
• 1x Terminal Manifold Right
• 20x 22mm Insert for 22mm Rigid Pipe
• 2x Clamp Size 2
• 42x Clamp Size 3
• 1x 8mm Screwdriver for 5" Clamp
• 1x Wrench 5"
• 1x Wrench for Float Valve
• 1x 8mm Socket for 5" Clamp
• 1x Pipe Cutter 50mm
• 5x?Silicone Grease - Food Grade

Number of pots:	18
Number of rows:	2
Kit total fluid volume:	296.1 gallons (1121 L)
Minimum assembled size (can space pots more widely for a larger footprint):
Length:	17' 9.8" (213.8 inches / 5430 mm)
Width:	3' 11.2" (47.2 inches / 1200 mm)
Water Pump Included with the Kit:
Model:	V-SYSTEM Vortex Water Pump 1500W 240V 22500 l/h
Wattage:	1500 watts
Flow Rate:	5944 gal/hr (22500 L/hr)
Recommended water chiller minimum capacity:	528 gallons (2000 L)

Number of pots:	18
Number of rows:	3
Kit total fluid volume:	293.8 gallons (1112 L)
Minimum assembled size (can space pots more widely for a larger footprint):
Length:	12' 1.3" (145.3 inches / 3690 mm)
Width:	5' 9.3" (69.3 inches / 1760 mm)
Water Pump Included with the Kit:
Model:	V-SYSTEM Vortex Water Pump 1100W 120V 17700 l/h
Wattage:	1100 watts
Flow Rate:	4676 gal/hr (17700 L/hr)
Recommended water chiller minimum capacity:	528 gallons (2000 L)

?Alien Hydroponics V-System?18? Pot Technical Drawing

---

Alien Hydroponics V-System?18 Warranty

Alien Hydroponics provides a 3-year warranty for all parts and a standard 1-year warranty for pumps.
