AC Infinity Cloudline S12 Inline Duct Fan System with Speed Controller - 12 Inch - Quiet Ventilation for Grow Tents, Hydroponics & Indoor Air Circulation
Free shipping on all orders over $50
7-15 days international
23 people viewing this product right now!
30-day free returns
Secure checkout
61677597
Description
AC Infinity Cloudline S12 Inline Fan System w/ Speed Controller - 12" Duct

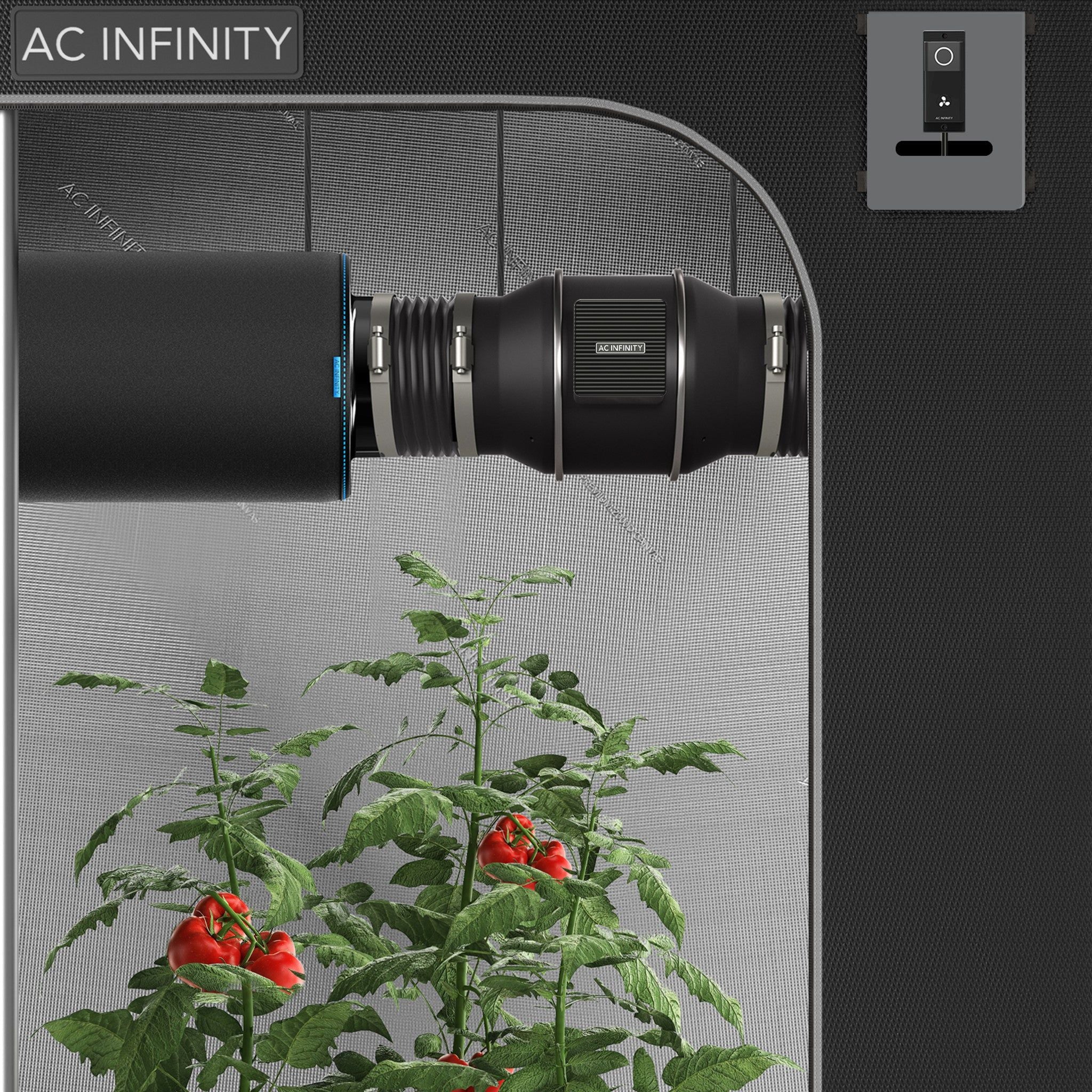

The CloudLine S12 is a premium duct fan that allows you to circulate air efficiently in your grow tent.?
The CloudLine S12 features an inline mixed-flow design that ensures consistent airflow, even in high static-pressure situations. This fan may bring in fresh air or blow out odor from the grow tent.?
Each fan comes with an eight-speed controller, with the option to upgrade to the Controller 69 system.?
Duct size: 12"
Features
Quiet Operation
The CloudLine S12 operates quietly with a PWM-controlled EC motor, so you don’t disturb people when growing at home.
Mixed-flow Design
You can use the CloudLine S12 to bring fresh air or expel odors inside the tent.
CloudLine Smart Controller-compatible
Upgrade or integrate the CloudLine S12 with any of the CloudLine controllers to get better access to the controls of the fan.
Easy Maintenance
The impeller and blades of the CloudLine S12 can be detached easily for cleaning and maintenance.
Highlights
- 12-inch duct
- Mixed-flow Design
- CloudLine Controller 69 Compatible
- 1604 CFM Airflow
- 2800 Maximum RPM
- Horizontal or Vertical Mounting
- Dual Ball Bearings
Specifications
| Product and Mounting Dimensions - Fan Unit | |
| Duct Size | 12" |
| Total Dimensions | 12.28 x 17.71 x 14.05 in. (31.2 x 45.0 x 35.7 cm) |
| Mounting Hole-To-Hole Distance | 7.00 x 7.12 in. (17.8 x 18.1 cm) |
| Screw Hole Size | ? 0.462 in. (? 1.18 cm) |
| Cord Length to Controller | 240 in. (20 feet) |
| Cord Length to Plug | 96 in. (8 feet) |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm) |
| Required Mounting Area | 2.95 x 0.51 in. (3.6 x 1.3 cm) |
| Hole to Hole Distance | 2.87 in. (7.3 cm) |
| Screw Hole Size | ? 0.157 in. (? 0.4 cm) |
| Product Performance and Technical Specs | |
| Total Airflow | 1604 CFM |
| Total Noise | 62 dBA |
| Static Pressure | 818 Pa |
| Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Max Power Draw | 250 W |
| Average Power Usage | 139 W |
| Current | 2.5 A |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Ingress Protection | IP 44 |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
Downloads
Warranty
All sales final. AC Infinity?comes with a two-year warranty.?
Please note this does NOT cover non-durable goods or consumables designed to be recurrently used.
