AC Infinity Cloudline S8 8-Inch Inline Duct Fan with Speed Controller - Quiet Ventilation for Grow Tents, Hydroponics & Home HVAC Systems
Free shipping on all orders over $50
7-15 days international
30 people viewing this product right now!
30-day free returns
Secure checkout
70111898
Description

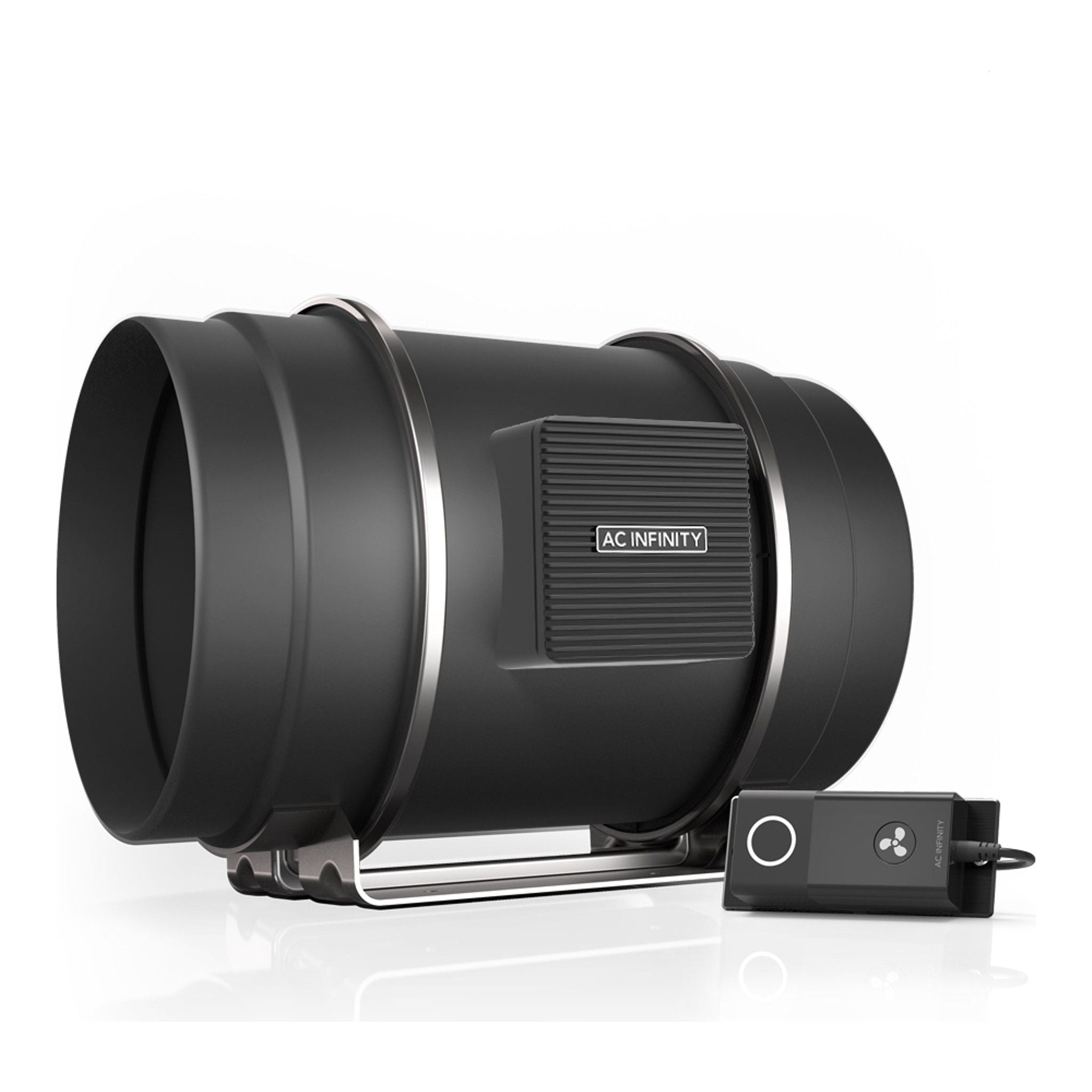

AC Infinity Cloudline S8 Inline Fan System w/ Speed Controller - 8" Duct
The CloudLine S8 is a premium duct fan that allows you to circulate air efficiently in your grow tent.?
The CloudLine S8 features an inline mixed-flow design that ensures consistent airflow, even in high static-pressure situations. This fan may bring in fresh air or blow out odor from the grow tent.?
Each fan comes with an eight-speed controller, with the option to upgrade to the Controller 69 system.?
Duct size: 8"
Features
Quiet Operation
The CloudLine S8 operates quietly with a PWM-controlled EC motor, so you don’t disturb people when growing at home.
Mixed-flow Design
You can use the CloudLine S8 to bring fresh air or expel odors inside the tent.

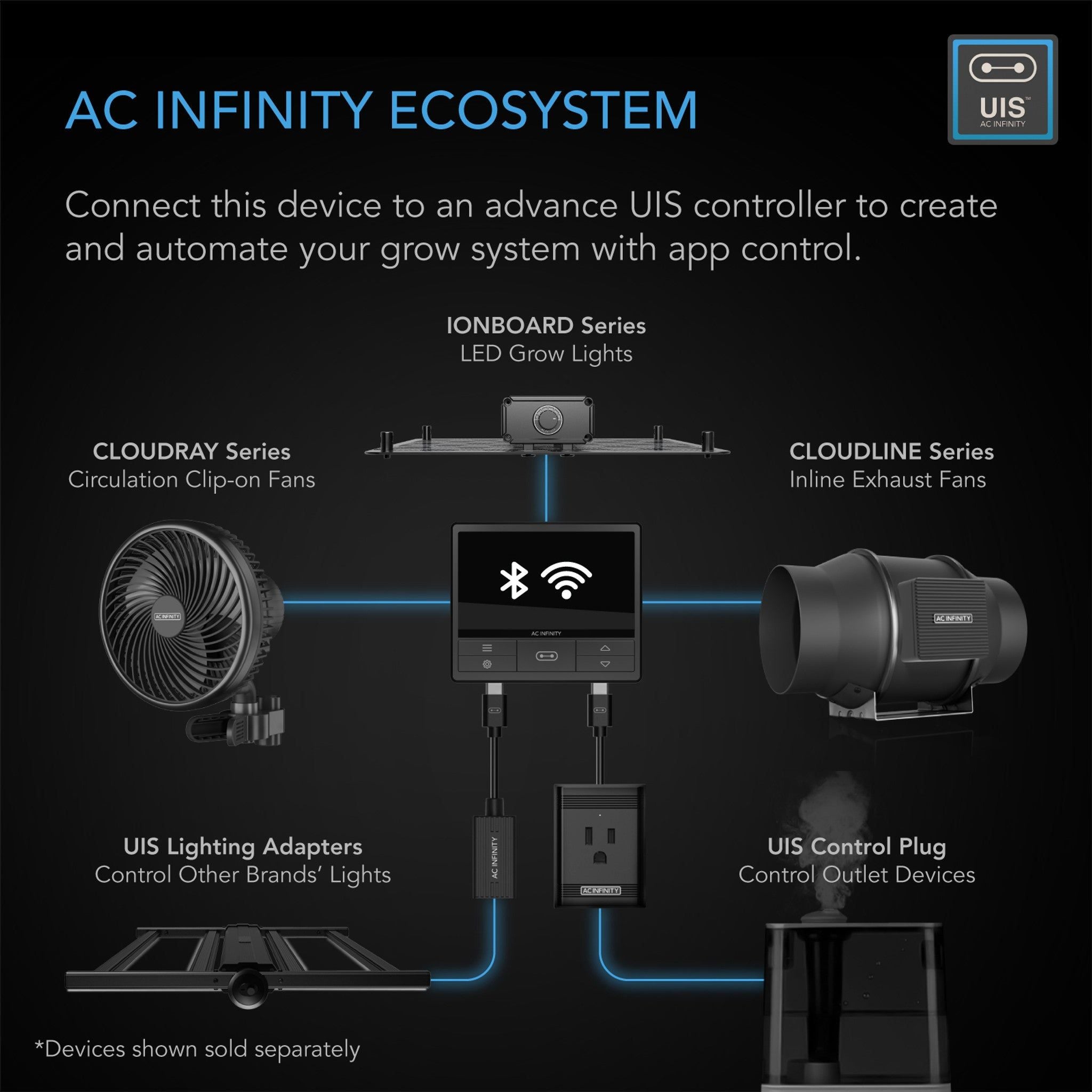

CloudLine Smart Controller-compatible
Upgrade or integrate the CloudLine S8 with any of the CloudLine controllers to get better access to the controls of the fan.
Easy Maintenance
The impeller and blades of the CloudLine S8 can be detached easily for cleaning and maintenance.
Highlights
- Eight-inch duct
- Mixed-flow Design
- CloudLine Controller 69 Compatible
- 807 CFM Airflow
- 2800 Maximum RPM
- Horizontal or Vertical Mounting
- Dual Ball Bearings
Specifications
| Product and Mounting Dimensions - Fan Unit | |
| Duct Size | 8" |
| Total Dimensions | 8.54 x 11.89 x 9.17 in. (21.7 x 30.2 x 12.3 cm) |
| Mounting Hole-To-Hole Distance | 3.94 x 3.70 in. (10.0 x 9.4 cm) |
| Screw Hole Size | ? 0.217 in. (? 0.55 cm) |
| Cord Length to Controller | 240 in. (20 feet) |
| Cord Length to Plug | 96 in. (8 feet) |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 3.34 x 2.95 x 0.51 in. (8.5 x 3.6 x 1.3 cm) |
| Required Mounting Area | 2.95 x 0.51 in. (3.6 x 1.3 cm) |
| Hole to Hole Distance | 2.87 in. (7.3 cm) |
| Screw Hole Size | ? 0.157 in. (? 0.4 cm) |
| Product Performance and Technical Specs | |
| Total Airflow | 807 CFM |
| Total Noise | 39 dBA |
| Static Pressure | 746 Pa |
| Voltage | 100-240V AC |
| Frequency | 50/60Hz |
| Max Power Draw | 110 W |
| Average Power Usage | 78 W |
| Current | 2.27 A |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Ingress Protection | IP 44 |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
Downloads
Warranty
All sales final. AC Infinity?comes with a two-year warranty.?
Please note this does NOT cover non-durable goods or consumables designed to be recurrently used.
