AC Infinity Cloudline T4 Inline Fan System with Smart Controller - 4" Duct for Grow Tent, Hydroponics & Home Ventilation - Quiet Airflow for Indoor Gardening & HVAC
Free shipping on all orders over $50
7-15 days international
22 people viewing this product right now!
30-day free returns
Secure checkout
94339834
Description
AC Infinity Cloudline T4 Inline Fan System w/ Smart Controller - 4" Duct
The CloudLine T4 gives you the essentials to ensure a proper environment in your grow tent.?

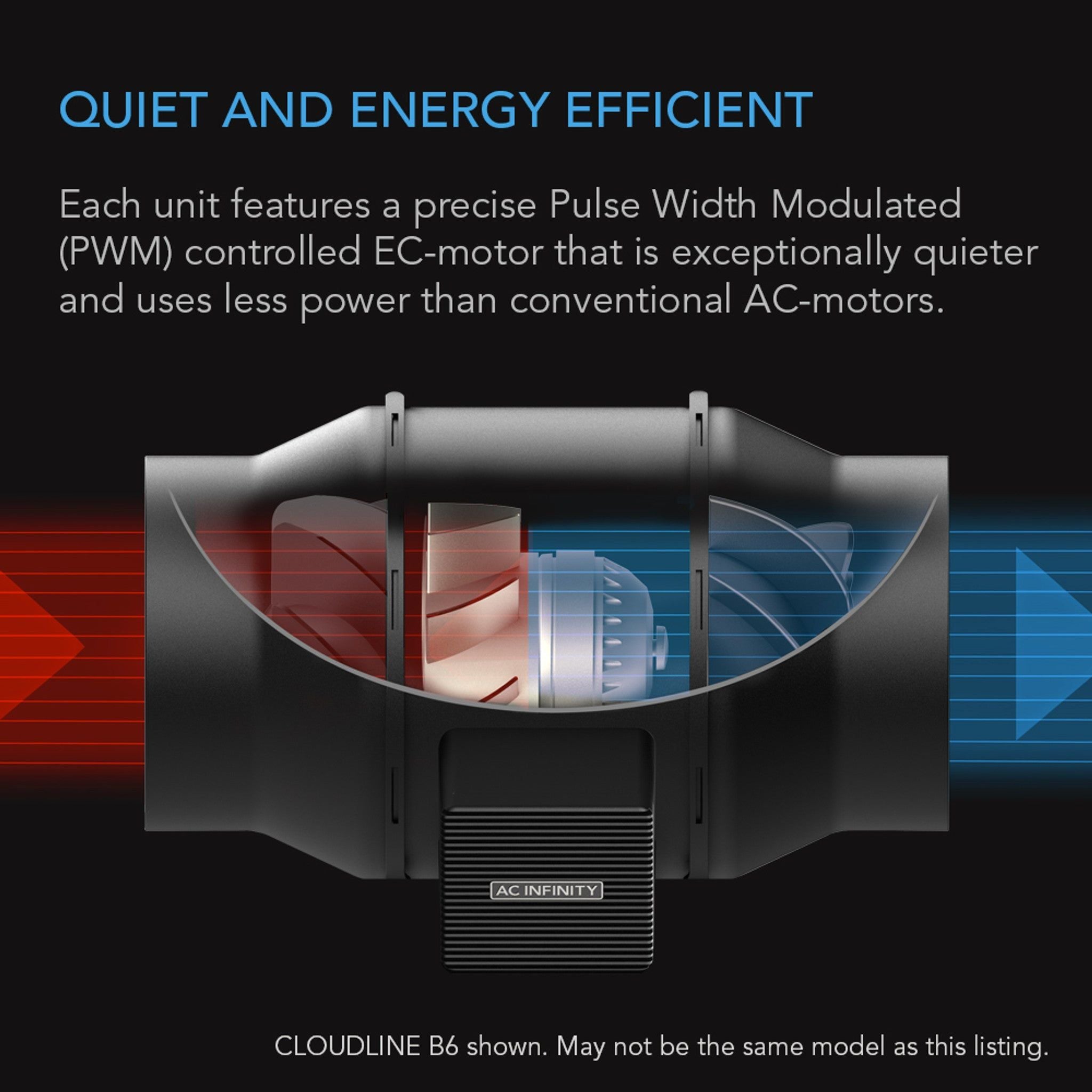

The CloudLine T4 features an inline mixed-flow design that ensures consistent airflow, even in high static-pressure situations. This fan may bring in fresh air or blow out odor from the grow tent.?
Features smart programming that not only has basic temperature and humidity triggers, but also allows you to set dynamic fan speeds that would respond based on their changes.

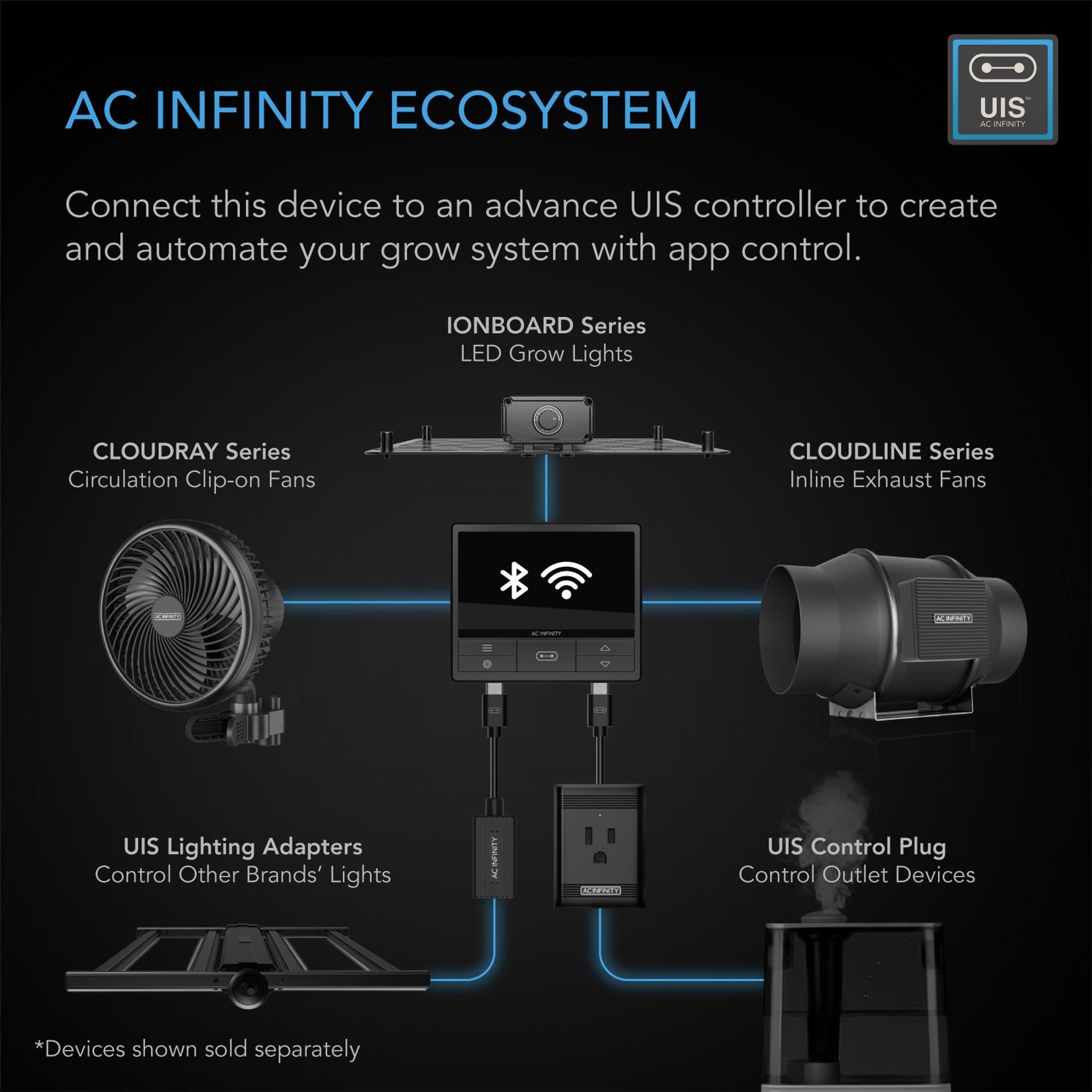

This controller can connect to up to four UIS devices which includes products like the CLOUDLINE, CLOUDRAY, and IONBOARD Series.
Duct size: 4"
Features
Quiet Operation
The CloudLine T4 operates quietly, so you don’t disturb people when growing at home.?
Temperature and Humidity Sensors
The CloudLine T4 lets you keep track of heat and humidity so that you can make adjustments in your grow tent.?
CloudLine Smart Controller-compatible
Upgrade or integrate the CloudLine T4 with any of the CloudLine controllers to get better access to the controls of the fan.
Easy Maintenance
The impeller and blades of the CloudLine T4 can be detached easily for cleaning and maintenance.
Highlights
- Four-inch duct?
- Temperature and Humidity Sensors?
- Mixed-flow Design
- CloudLine Controller 69 Compatible
- 205 CFM Airflow
- 2800 Maximum RPM
- Horizontal or Vertical Mounting
- Dual Ball Bearings
Specifications
| Product and Mounting Dimensions - Fan Unit | |
| Duct Size | 4" |
| Total Dimensions | 7.40 x 11.93 x 6.93 in. (18.8 x 30.3 x 17.6 cm) |
| Mounting Hole-To-Hole Distance | 3.15 x 2.36 in. (8.0 x 6.0 cm) |
| Screw Hole Size | ? 0.197 in. (? 0.5 cm) |
| Cord Length to Controller | 240 in. (20 feet) |
| Product and Mounting Dimensions - Controller | |
| Total Dimensions | 5.19 x 2.91 x 1.06 in. (13.2 x 7.4 x 2.7 cm) |
| Hole to Hole Distance | 4.71 x 2.64 in. (12.0 x 6.7 cm) |
| Screw Hole Size | ? 0.119 in (? 0.3 cm) |
| Display Size | 3.5 x 1.4 in. (9 x 3.5 cm) |
| Cord Length to Plug | 108 in. (9 feet) |
| Sensor Probe Length | 144 in. (12 feet) |
| Product Performance and Technical Specs | |
| Total Airflow | 205 CFM |
| Total Noise | 28 dBA |
| Max Speed | 2800 RPM |
| Static Pressure | 223 Pa |
| Voltage | 100-240V AC |
| Frequency | 50/60 Hz |
| Max Power Draw | 28 W |
| Average Power Usage | 21 W |
| Current | 1.2 A |
| Power Connector Type | US Plug (NEMA 1-15 Type-A) |
| Operating Humidity | 35 to 85% RH |
| Operating Temperature | 32 to 140°F |
| Ingress Protection | IP 44 |
| Fan Bearings | Dual Ball |
| Mounting Positions | Horizontal or Vertical |
| L10 Life Expectancy | 67,000 Hours |
Downloads
Warranty
All sales final. AC Infinity?comes with a two-year warranty.?
Please note this does NOT cover non-durable goods or consumables designed to be recurrently used.
